Medium-Sensitivity Thermostat Bimetal Strip FPA206-78 / Neomax BL-2 / TB1577A / Imphy AS
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | Bright | Thickness: | 1mm |
|---|---|---|---|

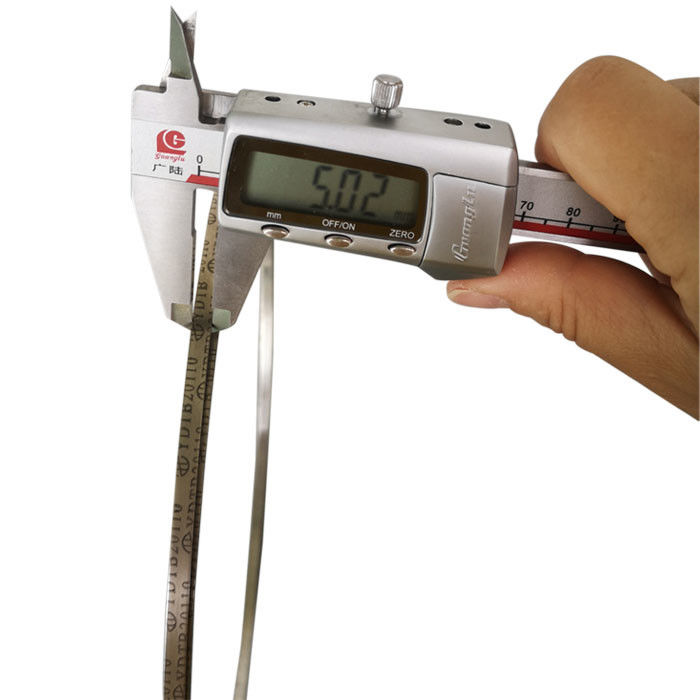

| Width: | 5mm | Certificate: | ISO 9001:2015 RoHs |
| Material Content: | Mn75Ni15Cu10/Ni36 | Form: | Strip/plate |

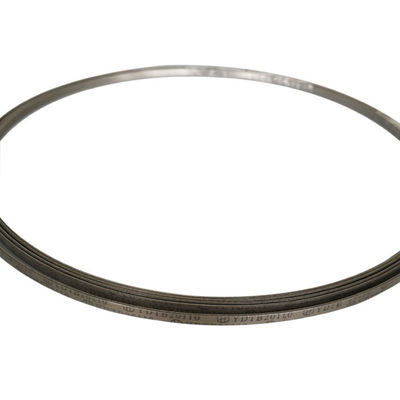

Medium-Sensitivity Thermostat Bimetal Strip FPA206-78 / Neomax BL-2 / TB1577A / Imphy AS
Common Name: 5J20110, Telcon200, 1200,ASTM B388 TM2
Application area:
The material is mainly in automatic control devices and instrumentation (eg: exhaust thermometers, thermostats, voltage regulators, temperature relay, automatic protection switching, diaphragm meters, etc.) make temperature control, temperature compensation, current limit, temperature indicator and other heat-sensitive components.
Feature:
The basic characteristics of Thermostat Bimetallic is bending deformation with temperature changes, resulting in a certain moment.
Thermostat Bimetallic Strip expansion coefficient is different from the two or more layers of metal or alloy along the entire contact surface firmly bonded, having a temperature-dependent shape change occurs thermosensitive
functional composites.Wherein the higher expansion coefficient of the active layer is a layer called a low coefficient of expansion of the layer is named passive layer.
Description of this material
| Grade | 5J20110 |
| High expansion layer | Mn75Ni15Cu10 |
| 10Low expansion layer | Ni36 |
| Grade | C | Si | Mn | P | S | Ni | Cr | Cu | Fe |
| Ni36 | ≤0.05 | ≤0.3 | ≤0.6 | ≤0.02 | ≤0.02 | 35~37 | - | - | Bal. |
| Grade | C | Si | Mn | P | S | Ni | Cr | Cu | Fe |
| Mn75Ni15Cu10 | ≤0.05 | ≤0.3 | Bal. | ≤0.02 | ≤0.02 | 14~16 | - | - | Bal. |
Typical Physical properties
| Density (g/cm3) | 7.7 |
| Electrical resistivity at 20℃(Ωmm2/m) | 1.13 ±5% |
| Thermal conductivity, λ/ W/(m*℃) | 6 |
| Elastic Modulus, E/ Gpa | 113~142 |
| Bending K / 10-6 ℃-1(20~135℃) | 20.8 |
| Temperature bending rate F/(20~130℃)10-6℃-1 | 39.0%±5% |
| Allowable temperature (℃) | -70~ 200 |
| Linear temperature (℃) |
-20~ 150 |
