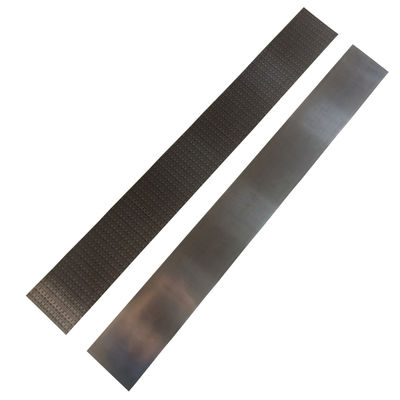

0.1-1.5mm 5J1580 Strip Stock | Fast Trip Thermal Protectors | Low Hysteresis | ASTM B388 | ±0.5°C Accuracy

Large Image : 0.1-1.5mm 5J1580 Strip Stock | Fast Trip Thermal Protectors | Low Hysteresis | ASTM B388 | ±0.5°C Accuracy Get Best Price

Product Details:

Place of Origin:	China(Shanghai)
Brand Name:	OHMALLOY
Certification:	ISO
Model Number:	5J1580

Payment & Shipping Terms:

Minimum Order Quantity:	20kg
Price:	negotiable
Delivery Time:	5-8 workdays after your received deposit

Contact Now

Detailed Product Description

Highlight:

bimetallic strip thermal protector

low hysteresis bimetallic strip

ASTM B388 strip stock

0.1-1.5mm 5J1580 Strip Stock | Fast Trip Thermal Protectors | Low Hysteresis | ASTM B388 | ±0.5°C Accuracy

Thermal bimetal strip is a composite material consisting of two or more layers of metal with different expansion coefficients. These materials change shape in response to temperature variations along the entire interface. The layer with high expansion coefficient serves as the active layer, while the low expansion coefficient layer functions as the passive component.

When applications require high resistivity while maintaining similar heat-sensitive resistance performance, an intermediate layer of varying thickness can be added between the two primary layers as a shunt layer. This configuration enables precise control over different resistivity levels.

Key Characteristics

High heat sensitive properties for precise temperature response
Excellent low temperature stability
Easy welding capability for simplified installation
Low hysteresis for accurate thermal cycling
±0.5°C accuracy for precision applications

The fundamental characteristic of thermal bimetal is its ability to transform temperature changes into mechanical deformation, generating specific moments of force. This property enables numerous devices to convert thermal energy into mechanical work, facilitating automatic temperature control systems. Thermal bimetal is widely used in control systems and temperature sensors within measuring instruments.

5J1580 Material Specifications
