Product Details:
Payment & Shipping Terms:
|
| Conductor Material: | Copper | Insulation Material: | Polyimide |
|---|---|---|---|
| Application: | Heating | Conductor Type: | Stranded |
| Insulation: | Polyimide | Color: | Black, White, Green, Red, Yellow, Blue |
| Wrapping Layers: | Two | Long-term Max Standing TemperaturelºC: | 250ºC |
| High Light: | copper alloys,copper nickel alloy |
||

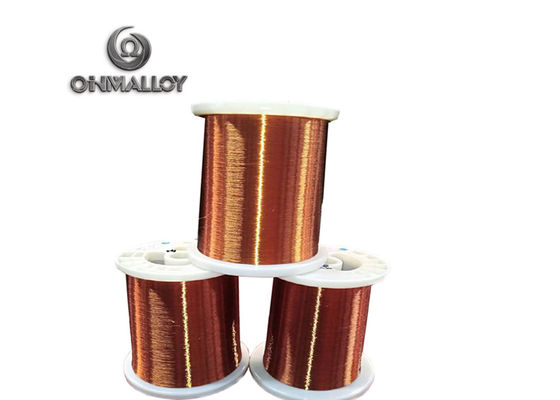

MYFE-4/200 Polyimide Film Wrapped Insulated Copper Round Wire
Conductor material: Copper
| Material | Chemical composition (%) | ||||
| Ni | Fe | Cr | Cu | Mn | |
| copper | 100 | ||||
Heating cable structure
| Conductor size | 2.24mm |
| Resistance value (ohm/m) | 4.36 |
| Insulation layer | Polyimide |
| Inner braid shielding | - |
| Out jacket | Polyimide |
| OD of cable | 2.28mm |
| Weight/meter | 0.035kg/1meter |
Working temperature
| Long-term max standing temperature | 250℃ |
| Shor-term max standing temperature | 300℃ |
Remarks: The size can be changed if special requirement.
The thickness of insulation also can be adjusted by special requirement. We can do insulation thickness 0.2mm to 2.5mm
Available conductor alloy grade as follows:
| NiCr60/15 | CuNi44 | CuNi23 | OCr25Al5 | OCr21Al6 |
| Nickel 200 | Nickel 201 | Nickel 212 | Tinned copper wire | CuNi6 |
| CuNi10 | NiCr35/20 | NiCr AA | Inconel 600 | Inconel 625 |
Type:
Myfe-4 voltage resistant 4KV double layer polyimide-fluoro 46 composite film wrapped copper flat wire
Myfs-7.25 voltage resistance 7.25kv three-layer polyimide-fluoro46 composite film wrapped copper flat wire
Myfs-8.7 voltage resistance 8.7KV three-layer polyimide-fluoro46 composite film wrapped copper flat wire
Myfs-10 voltage resistant 10KV three-layer polyimide-fluoro46 composite film wrapped copper flat wire
Product characteristics and application:
(1) Rated voltage: 600V
(2) Operating temperature: -80 ~ +250 ℃
(3) Conductor: Stranded silver plated copper wire or nickel plated copper wire
(4) Insulation: polyimide
(5) Color: red / yellow / blue / white / black / yellow green / brown / orange / purple / green / etc
(6) Product features:
Has excellent corrosion resistance, almost insoluble in any organic solvent, can be anti-oil, strong acid, anti-alkali, strong oxidants, etc .; has excellent electrical insulation properties, high voltage, high frequency loss, no moisture absorption, insulation resistance Large; with excellent fire resistance, aging resistance, long service life.
(7) Application:
Electronic industry, can be used for temperature compensation wire, low temperature wire, high temperature heating wire, anti-aging wire and flame retardant wire; household appliances industry, can be used for air conditioners, microwave ovens, electronic disinfection cabinet, rice cookers, electronic thermos, , Electric oven, electric wok, lighting, lighting and other internal wiring.
(8) Production Time:
7~12 days for 1,000~300,000 wires;
large quantity order Can be negotiable.
Sample wires are available for you to check the quality.
