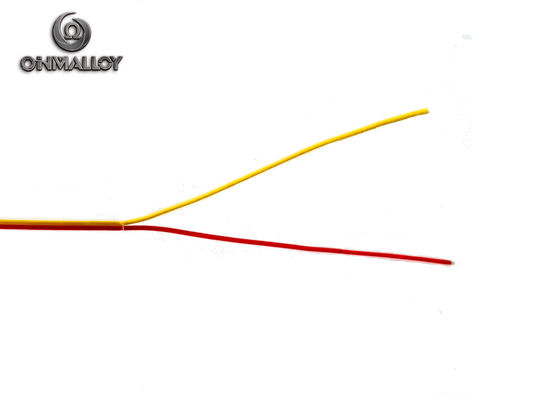

Ultra Thin k type Thermocouple Cable Insulated AWG 29 Flexible with PVC Coated

China Ultra Thin k type Thermocouple Cable Insulated AWG 29 Flexible with PVC Coated supplier
Ultra Thin k type Thermocouple Cable Insulated AWG 29 Flexible with PVC Coated supplier Ultra Thin k type Thermocouple Cable Insulated AWG 29 Flexible with PVC Coated supplier Ultra Thin k type Thermocouple Cable Insulated AWG 29 Flexible with PVC Coated supplier Ultra Thin k type Thermocouple Cable Insulated AWG 29 Flexible with PVC Coated supplier Ultra Thin k type Thermocouple Cable Insulated AWG 29 Flexible with PVC Coated supplier Ultra Thin k type Thermocouple Cable Insulated AWG 29 Flexible with PVC Coated supplier

Large Image :  Ultra Thin k type Thermocouple Cable Insulated AWG 29 Flexible with PVC Coated

Product Details:

Place of Origin: jiangsu
Brand Name: Ohmalloy/OEM
Certification: IEC/ASIN/JIS
Model Number: SP-K-PT-PT-0.3

Payment & Shipping Terms:

Minimum Order Quantity: 100 meters
Price: USD 0.5~10/meter
Packaging Details: Spool+paper case + wooden case/plastic packing+papre case+ wooden box outside(or customized)
Delivery Time: 5-8 working days after payment confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram,paypal
Supply Ability: 10000 meter/day
Contact Now
Detailed Product Description
Name: Ultra Thin Flexible Wire TYpe K Thermocouple Cable Conductor Material: KP:Chromel KN:Alumel
Insulation Material: Fiberglass/PTFE/PEF/Silicone Rubber Jacket Material: Fiberglass/PTFE/PEF/Silicone Rubber/PVC
Diameter: 0.3mm*2(customized) Color: + Yellow -Red(customized)
Certificate: GOST/JIS/GB(customized)

Ultra Thin Flexible Wire TYpe K Thermocouple Cable Insulated AWG 29 PVC Coated Thin Wire

TYPE K (CHROMEL vs ALUMEL ) is used in oxidizing, inert or dry reducing atmospheres. Exposure to vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperature.



1. Product Details



Ultra Thin k type Thermocouple Cable Insulated AWG 29 Flexible with PVC Coated



1. Chemical Composition

Material Chemical composition (%)
Ni Cr Si Mn Al
KP(Chromel) 90 10
KN(Alumel) 95   1-2 0.5-1.5 1-1.5



2. Physical Properties and Mechnical Properties

Material





Density(g/cm3)



Melting point℃)



Tensile Strength(Mpa)



Volume resistivity(μΩ.cm)



Elongation rate (%)

KP(Chromel) 8.5 1427 >490 70.6(20℃) >10
KN(Alumel) 8.6 1399 >390 29.4(20℃) >15



3. EMF Value Range at Different Temperature

Material

EMF value Vs Pt(μV)
100℃ 200℃ 300℃ 400℃ 500℃ 600℃
KP(Chromel) 2816~2896 5938~6018 9298~9378 12729~12821 16156~16266 19532~19676
KN(Alumel) 1218~1262 2140~2180 2849~2893 3600~3644 4403~4463 5271~5331



EMF value Vs Pt(μV)
700℃ 800℃ 900℃ 1000℃ 1100℃
22845~22999 26064~26246 29223~29411 32313~32525 35336~35548
6167~6247 7080~7160 7959~8059 8807~8907 9617~9737

Ultra Thin k type Thermocouple Cable Insulated AWG 29 Flexible with PVC Coated

Ultra Thin k type Thermocouple Cable Insulated AWG 29 Flexible with PVC Coated

Ultra Thin k type Thermocouple Cable Insulated AWG 29 Flexible with PVC Coated



2. Size Range Reference

Ultra Thin k type Thermocouple Cable Insulated AWG 29 Flexible with PVC Coated

Alloys Name Type Dimension
SP-K-W Wire D=0.03mm~8mm
SP-K-R Ribbon W=0.4~40 T=0.03~2.9mm
SP-K-S Strip W=8~250mm T=0.1~3.0
SP-K-F Foil W=6~120mm T=0.003~0.1
SP-K-B Bar Dia=8~100mm L=50~1000



3. Production Progress

Ultra Thin k type Thermocouple Cable Insulated AWG 29 Flexible with PVC Coated

3. Production Progress

-heating alloy.jpg





4. Package Reference

Ultra Thin k type Thermocouple Cable Insulated AWG 29 Flexible with PVC Coated

5. Our Service



Ultra Thin k type Thermocouple Cable Insulated AWG 29 Flexible with PVC Coated



Ultra Thin k type Thermocouple Cable Insulated AWG 29 Flexible with PVC Coated



6. Questions and Answers



Q1:How can I contact with your company?

A1:We have multiple communication channels : Tel/ :+86-15826530281



Q2:Do you provide free samples?

A2:Yes,we can provide free samples for your testing,but buyer should bear the shipping costs.



Q3:What is your payment terms?

A3:30% in advance,balance after receiving the copy of B/L. T/T,L/C,Western Union,Paypal is OK.



Q4:What is your lead time?

A4:On normal condition,the lead time is 7 days after the payment. Special order or quantity is subject to the negotiation.





Q5:What is your working time?

A5: Monday to Firday: 9:00-12:00,13:30-17:30, rest in weekend.
