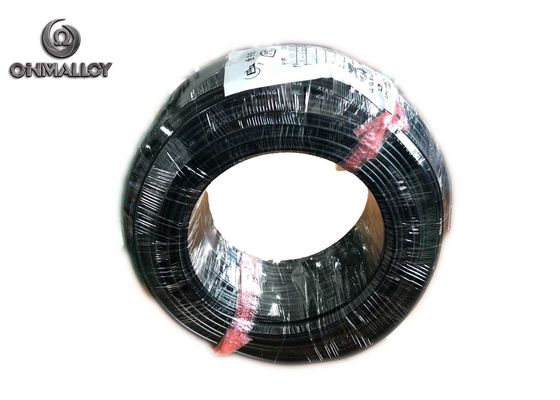

Large Image :  Jpx Jnx Thermocouple J Type Wire Multi Strands 24awg Pvc Insulated / Sheath

Product Details:

Place of Origin: jiangshu
Brand Name: Ohmalloy/OEM
Certification: GB
Model Number: SP-J-PV-PV-0.5R

Payment & Shipping Terms:

Minimum Order Quantity: 100 meters
Price: USD 0.5~10/meter
Packaging Details: Spool+paper case + wooden case/plastic packing+papre case+ wooden box outside(or customized)
Delivery Time: 5-8 working days after payment confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram,paypal
Supply Ability: 10000 meter/day
Contact Now
Detailed Product Description
Name: JPX/JNX Type J Thermocouple Cable Multi Strands 24AWG Conductor Material: JP: CuNi45 JN: Fe
Insulation Material: Fiberglass/PTFE/PEF/Silicone Rubber Jacket Material: Fiberglass/PTFE/PEF/Silicone Rubber/PVC
Diameter: 0.5R*2(7*0.30mm) Color: White And Black (customized)
Certificate: GOST/JIS/GB(customized)

JPX/JNX Type J Thermocouple Cable Multi Strands 24 AWG PVC insulated And Sheath



TYPE J (Iron vs Constantan) is used in vacuum, oxidizing, inert or reducing atmospheres. Iron element oxidizes rapidly at temperatures exceeding 538'C, and therefore heavier gauge wire is recommended for longer life at these temperatures.





1. Product Details



1. Chemical Composition

Material Chemical composition (%)
Ni Cu Si Iron Al
JP(Iron)       100
JN(Constantan) 45 55



2. Physical Properties and Mechnical Properties





Material





Density(g/cm3)



Melting point(℃)



Tensile Strength(Mpa)



Volume resistivity(μΩ.cm)



Elongation rate (%)

JP(Iron) 7.8 1402 >240 12.0(20℃) >20
JN(Constantan) 8.8 1220 >390 49.0(20℃) >25



3. EMF Value Range at Different Temperature



Material EMF value (μV)
100℃ 200℃ 300℃ 400℃ 500℃ 600℃
JP-JN 5187~5351 10696~10862 16244~16410 21760~21936 27281~27505 32962~33242
EMF value Vs Pt(μV)
700℃ 750℃ 760℃ 800℃ 900℃ 1000℃
38958~39306 42089~42473 42725~43113



Type Insulation material CODE Inner Shielding CODE JACKET CODE Out shielding CODE Pairs solid Earth wire Stranded
K FEP FP     FEP FP     0 0.2mm E cross section+R
T PFA FA Al foil AL PFA FA copper wire CU 2 0.3mm
E PVC 70℃ LP copper wire CU PVC 70℃ LP Tinned copper TC 3 0.5mm
J PVC 105℃ HP Tinned copper TC PVC 105℃ HP Nickel plated copper NC 4 0.75mm
N Fiberglass 400℃ BL Nickel plated copper NC Fiberglass 400℃ BL Silver plated copper AC 5 1.0mm
SC Fiberglass600℃ BM Silver plated copper AC Fiberglass600℃ BM SS 304 wire SS 6 1.5mm
  Fiberglass700℃ BH     Fiberglass700℃ BH
  MICA FIBER 650℃ MA
KCA Vitreous Silica 800℃ VS SS 304 wire SS Vitreous Silica 800℃ VS     7 2.5mm
KCB Silica fiber1000℃ SV Inconel 600 wire 600 Silica fiber1000℃ SV     8
RTD Ceramic fiber1200℃ CF Inconel 625 wire 625 Ceramic fiber1200℃ CF     9
  PTFE PT     PTFE PT
  ETFE ET     ETFE ET
  KAPTON KP     KAPTON KP
  Silcone rubber SR     Silcone rubber SR
  Rubber RU     Rubber RU
  PE PE     PE PE



Size and Insulation Material Reference
Type Cross-Section
(mm2)
Diameter Insulation Material/Jacket Material Shield
AWG (SingleCore) mm
(Multi-Core)
SC RC BC KCA KCB KX NC NX EX JX LX 0.07 - 1 x 0.30 Ceramic Fiber(-60,+1200℃) Vitreous Silica(-60,+800℃) Mica(-60,+650℃) Silica Fiber(-60,+1000℃) High Temperature Fiber(-60,+600℃) Fiberglass(-60,+450℃) Polyimide Tape/Kapton(-60,+260℃) PTFE(-60,+275℃) PFA(-60,+275℃) FEP(-60,+205℃) Silicone Rubber(-60,+200℃) PVC(-25,+105℃) PVC(-25,+70℃) Nickel Chrome Alloy Wire Braiding; Stainless Steel Braiding; Tin-plated Copper Braiding; Aluminum-plastic Tape Wraping; Copper Tape Wraping; Aluminum Foil Wraping
0.22 24 7 x 0.20
0.35 22 5 x 0.30
0.40 21 13 x 0.20
0.50 20 7 x 0.30
0.50 20 19 x 0.20
0.75 19 7 x 0.37
0.75 19 24 x 0.20
1.00 18 14 x 0.30
1.00 18 24 x 0.20
1.34 16 7 x 0.49
1.34 16 19 x 0.30
1.50 16 7 x 0.52
1.50 16 21 x 0.30
2.00 14 19 x 0.366
2.00 14 28 x 0.30
2.50 13 19 x 0.41
2.50 13 36 x 0.30









2. Size Range Reference

Alloys Name Type Dimension
SP-J-W Wire D=0.03mm~8mm
SP-J-R Ribbon W=0.4~40 T=0.03~2.9mm
SP-J-S Strip W=8~250mm T=0.1~3.0
SP-J-F Foil W=6~120mm T=0.003~0.1
SP-J-B Bar Dia=8~100mm L=50~1000





3. Production Progress

-heating alloy.jpg







4. Our Service & Customer Representative





Jpx Jnx Thermocouple J Type Wire Multi Strands 24awg Pvc Insulated / Sheath







5. Questions and Answers



Q1:How can I contact with your company?

A1:We have multiple communication channels : Tel/WhatsApp/Skype/Wechat :+86-15826530281



Q2:Do you provide free samples?

A2:Yes,we can provide free samples for your testing,but buyer should bear the shipping costs.



Q3:What is your payment terms?

A3:30% in advance,balance after receiving the copy of B/L. T/T,L/C,Western Union,Paypal is OK.



Q4:What is your lead time?

A4:On normal condition,the lead time is 7 days after the payment. Special order or quantity is subject to the negotiation.





Q5:What is your working time?

A5: Monday to Firday: 9:00-12:00,13:30-17:30, rest in weekend.

Contact Details
Ohmalloy Material Co.,Ltd

Contact Person: Sparrow

Send your inquiry directly to us (0 / 3000)
