4 Wires Silicone Rubber RTD PT100 Thermocouple Sensor Armored Cable For Temperature Detector

China 4 Wires Silicone Rubber RTD PT100 Thermocouple Sensor  Armored Cable For Temperature Detector supplier
4 Wires Silicone Rubber RTD PT100 Thermocouple Sensor  Armored Cable For Temperature Detector supplier 4 Wires Silicone Rubber RTD PT100 Thermocouple Sensor  Armored Cable For Temperature Detector supplier 4 Wires Silicone Rubber RTD PT100 Thermocouple Sensor  Armored Cable For Temperature Detector supplier 4 Wires Silicone Rubber RTD PT100 Thermocouple Sensor  Armored Cable For Temperature Detector supplier 4 Wires Silicone Rubber RTD PT100 Thermocouple Sensor  Armored Cable For Temperature Detector supplier

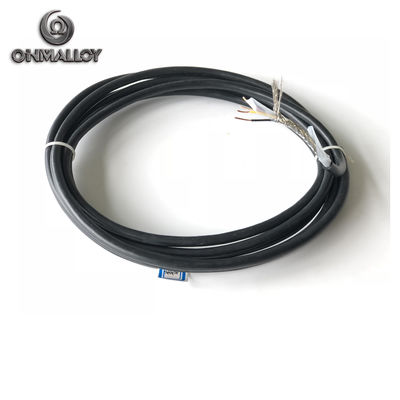

Large Image :  4 Wires Silicone Rubber RTD PT100 Thermocouple Sensor Armored Cable For Temperature Detector

Product Details:

Place of Origin: shanghai
Brand Name: Ohmalloy/OEM
Certification: IEC/ASIN/JIS
Model Number: SP-RTD-SR-SR-0.5Rx4

Payment & Shipping Terms:

Minimum Order Quantity: 500 meters
Price: USD 0.5~10/meter
Packaging Details: Spool+paper case + wooden case/plastic packing+papre case+ wooden box outside(or customized)
Delivery Time: 5-8 working days after payment confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram,paypal
Supply Ability: 1000meter/day
Contact Now
Detailed Product Description
Product Name: 4 Wires Silicone Rubber RTD PT100 Thermocouple Cable Conductor Material: + Copper -copper
Sheath: SS304+plastic Foil Application: Temperature Measurement
Size: 4x7*0.30mm Jacket: Silicone Rubber

4 Wires Silicone Rubber RTD PT100 Thermocouple Sensor Armored Cable For Temperature Detector



4 Wires Silicone Rubber RTD PT100 Thermocouple Sensor  Armored Cable For Temperature Detector

1. Chemical Composition



Material Chemical composition (%)
            Ni           Cu            Si             Mn          other
      P(copper)           >99.9               <0.1
      N(copper)           >99.9               <0.1



2. Physical Properties and Mechanical Properties

Material





Density(g/cm3)



Melting point℃)



Tensile Strength(Mpa)



Volume resistivity(μΩ.cm)



Elongation rate (%)

   P(copper)            8.9 1084 >196 1.71(20℃) >30
   N(copper)            8.9 1084 >196 1.71(20℃) >30





2. Size and Insulation Material Reference



Size and Insulation Material Reference
Type Cross-Section
(mm2)
Diameter Insulation Material/ Jacket Material Shield
AWG (SingleCore) mm
(Multi-Core)
SC RC BC KCA KCB KX NC NX EX JX LX 0.07 - 1 x 0.30 Ceramic Fiber(-60,+1200℃) Vitreous Silica(-60,+800℃) Mica(-60,+650℃)                               Silica Fiber(-60,+1000℃)                  High Temperature Fiber(-60,+600℃) Fiberglass(-60,+450℃) PolyimideTape/Kapton(-60,+260℃) PTFE(-60,+275℃) PFA(-60,+275℃) FEP(-60,+205℃)  SiliconeRubber(-60,+200℃) PVC(-25,+105℃) PVC(-25,+70℃) Nickel Chrome Alloy Wire  Braiding;             Stainless Steel Braiding; Tin-plated Copper Braiding;                 Aluminum-plastic Tape Wraping;                       Copper Tape Wraping; Aluminum Foil Wraping
0.22 24 7 x 0.20
0.35 22 5 x 0.30
0.40 21 13 x 0.20
0.50 20 7 x 0.30
0.50 20 19 x 0.20
0.75 19 7 x 0.37
0.75 19 24 x 0.20
1.00 18 14 x 0.30
1.00 18 24 x 0.20
1.34 16 7 x 0.49
1.34 16 19 x 0.30
1.50 16 7 x 0.52
1.50 16 21 x 0.30
2.00 14 19 x 0.366
2.00 14 28 x 0.30
2.50 13 19 x 0.41
2.50 13 36 x 0.30







3. Questions and Answers



Q1:How can I contact with your company?

A1:We have multiple communication channels : Tel/ :+86-15826530281



Q2:Do you provide free samples?

A2:Yes,we can provide free samples for your testing,but buyer should bear the shipping costs.



Q3:What is your payment terms?

A3:30% in advance,balance after receiving the copy of B/L. T/T,L/C,Western Union,Paypal is OK.



Q4:What is your lead time?

A4:On normal condition,the lead time is 7 days after the payment. Special order or quantity is subject to the negotiation.





Q5:What is your working time?

A5: Monday to Firday: 9:00-12:00,13:30-17:30, rest in weekend.
