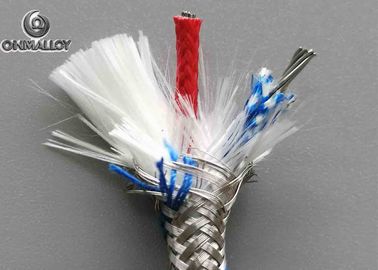

Class I Thermocouple Wire Type J Fiberglass Insulated SS304 Sheath

China Class I Thermocouple Wire Type J Fiberglass Insulated SS304 Sheath supplier
Class I Thermocouple Wire Type J Fiberglass Insulated SS304 Sheath supplier Class I Thermocouple Wire Type J Fiberglass Insulated SS304 Sheath supplier Class I Thermocouple Wire Type J Fiberglass Insulated SS304 Sheath supplier

Large Image :  Class I Thermocouple Wire Type J Fiberglass Insulated SS304 Sheath

Product Details:

Place of Origin: China
Brand Name: Ohmalloy/OEM
Certification: SGS/RoHs
Model Number: SP-J-BL-BL-SS304-0.22R

Payment & Shipping Terms:

Minimum Order Quantity: 50 meters
Price: USD 0.52-1.85 / Meter
Packaging Details: Coil/Spool+paper carton+ wooden pallet
Delivery Time: 2-5 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 meters / month
Contact Now
Detailed Product Description
Name: Thermocouple Wire Type J -10→105°C Multi Strands PVC Insulated Cable Accuracy Class I Conductor: + Iron -Constantan
Insulated Material: Fiberglass(400 Degree Celsius) Sheath Material: SS304
Accuracy: Class I (T±4%) Length: 100meter/200meter/500meter(customized)

Thermocouple Wire Type J Fiberglass Insulated SS304 Sheath -50→400°C Cable Class I



TYPE J (Iron vs Constantan) is used in vacuum, oxidizing, inert or reducing atmospheres. Iron element oxidizes rapidly at temperatures exceeding 538°C, and therefore heavier gauge wire is recommended for longer life at these temperatures.



1. Chemical Composition

Material Chemical composition (%)
Ni Cu Si Iron Al
JP(Iron)       100
JN(Constantan) 45 55



2. Physical Properties and Mechnical Properties





Material





Density(g/cm3)



Melting point(℃)



Tensile Strength(Mpa)



Volume resistivity(μΩ.cm)



Elongation rate (%)

JP(Iron) 7.8 1402 >240 12.0(20℃) >20
JN(Constantan) 8.8 1220 >390 49.0(20℃) >25

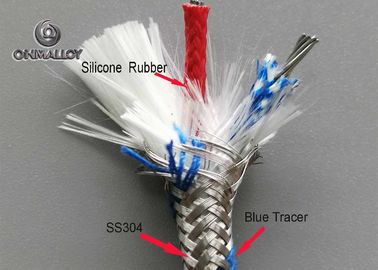

Class I Thermocouple Wire Type J Fiberglass Insulated SS304 Sheath



ReF. The Short Name for Materials



Type Insulation material CODE Inner Shielding CODE JACKET CODE
K FEP FP     FEP FP
T PFA FA Al foil AL PFA FA
E PVC 70℃ LP copper wire CU PVC 70℃ LP
J PVC 105℃ HP Tinned copper TC PVC 105℃ HP
N Fiberglass 400℃ BL Nickel plated copper NC Fiberglass 400℃ BL
SC Fiberglass600℃ BM Silver plated copper AC Fiberglass600℃ BM
  Fiberglass700℃ BH     Fiberglass700℃ BH
  MICA FIBER 650℃ MA
KCA Vitreous Silica 800℃ VS SS 304 wire SS Vitreous Silica 800℃ VS
KCB Silica fiber1000℃ SV Inconel 600 wire 600 Silica fiber1000℃ SV
RTD Ceramic fiber1200℃ CF Inconel 625 wire 625 Ceramic fiber1200℃ CF
  PTFE PT     PTFE PT
  ETFE ET     ETFE ET
  KAPTON KP     KAPTON KP
  Silicone rubber SR     Silicone rubber SR
  Rubber RU     Rubber RU
  PE PE     PE PE
