Mineral Insulated Duplex Thermocouple Cable Compensation Cable Type K J T S PT100 Seamless Tube Sheath

China Mineral Insulated Duplex Thermocouple Cable Compensation Cable Type K J T S PT100 Seamless Tube Sheath supplier
Mineral Insulated Duplex Thermocouple Cable Compensation Cable Type K J T S PT100 Seamless Tube Sheath supplier Mineral Insulated Duplex Thermocouple Cable Compensation Cable Type K J T S PT100 Seamless Tube Sheath supplier Mineral Insulated Duplex Thermocouple Cable Compensation Cable Type K J T S PT100 Seamless Tube Sheath supplier Mineral Insulated Duplex Thermocouple Cable Compensation Cable Type K J T S PT100 Seamless Tube Sheath supplier Mineral Insulated Duplex Thermocouple Cable Compensation Cable Type K J T S PT100 Seamless Tube Sheath supplier Mineral Insulated Duplex Thermocouple Cable Compensation Cable Type K J T S PT100 Seamless Tube Sheath supplier

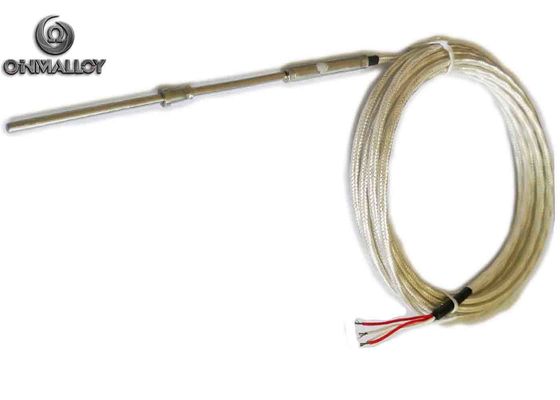

Large Image :  Mineral Insulated Duplex Thermocouple Cable Compensation Cable Type K J T S PT100 Seamless Tube Sheath

Product Details:

Place of Origin: China
Brand Name: Ohmalloy/OEM
Certification: SGS/RoHs
Model Number: SP-MI

Payment & Shipping Terms:

Minimum Order Quantity: 50 meters
Price: USD 1.85 - 25 USD / Piece
Packaging Details: Coil+paper carton+ wooden pallet
Delivery Time: 2-5 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Piece / Month
Contact Now
Detailed Product Description
Type: Type K / T / E / S / B / N / J / PT100(customized) Sheath Material: SS304 / SS310 / SS316L / Inconel 600 / Inconel 601 / GH3030
Core Diameter: 0.01-8.0mm(customized) Number Of Cores: 1 / 2 / 3 / 4 / 6 / 8 Pairs(customized)
Accuracy: Class I (T±4%) Plug Type: MiNi / Standard / Big Size(Customized)
Length: 5 / 10 / 50 / 100 Meters(customized) Standard Meet: IEC / JIS / DIN / ANSI / RoHs(customized)

 Mineral Insulated Duplex Thermocouple Compensation Cable Type K J T S PT100 Seamless Tube Sheath



Brief Introduction of MI Thermocouple

A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit. Thermocouples are a widely used type of temperature sensor for measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive, interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation.



Application for MI thermocouple

Thermocouple is the most widely used temperature sensor, it already applies to Chemical, Metallurgy, Power, Mechanical, Construction material industry: applications include temperature measurement for kilns, gas turbine exhaust, diesel engines, and other industrial processes. Thermocouples are also used in homes, offices and businesses as the temperature sensors in thermostats, and also as flame sensors in safety devices for gas-powered major appliances.



Advantage:

1. Simple structure, easy to manufacture

2. Easy installation, low cost

3. Small inertia

4. High accuracy

5. Large measure range

6. Measure temperature by electrical signal, meet the request for remote measurement and control

7. Suitable for different measure request (special site or narrow spot), such as temperature measurement at point or face



Temperature Range Type K (Ni-Cr/Ni-Si) [-40~1000℃(-104 ~1832°F)]
Type N (Ni-Cr-Si/Ni-Cr-Mg) [-40~800℃(-104 ~1472°F)]
Type T (Cu/Cu-Ni) [-200~300℃(-328 ~572°F)]
Type E (Ni-Cr/Ni-Cu) [-200~700℃(-328 ~1292°F)]
Type J (Fe/Cu-Ni) [-40~600℃(104 ~1112°F)]
Accuracy Class A or Class B
Diameter φ0.25, φ0.5, φ1.0, φ2.0, φ3.0, φ4.0, φ5.0, φ6.0, φ7.0, φ8.0. (or Customized)
Material 304,316,316L,GH3030,GH3039,Inconel600



Type : MI cable
Insulator: Magnesium Oxide
sensor wires type: Single or double
Use: Thermocouple or RTD
Bare material: Pt,Rh,Ni,Cr,Si,Cu,Fe
Response time: 3sec to10sec/Variable depend upon types
Temperature range:
-200 t0 600(RTD),-40 to1700(Thermocouple)
Certification: ISO9001, ISO14001
Package: carton box or as your requirement

Mineral Insulated Duplex Thermocouple Cable Compensation Cable Type K J T S PT100 Seamless Tube Sheath
