Name: | RX SX Thermocouple Extension Cable Fiberglass Stainless Steel Sheath | Type: | Rx Or Sx |
---|---|---|---|
Conductor Material: | + Copper -Copper Nickel | Insulation Material: | Fiberglass(400 Degree Celsius) |
Sheath Material: | Stainless Steel 304 Braiding | Conductor Size: | 19/0.3mm(1.5mm2) |
Accuracy: | Class I(0~200 Degree Celsius) | ||
High Light: | k type thermocouple cable,thermocouple bare wire,thermocouple extension wire |

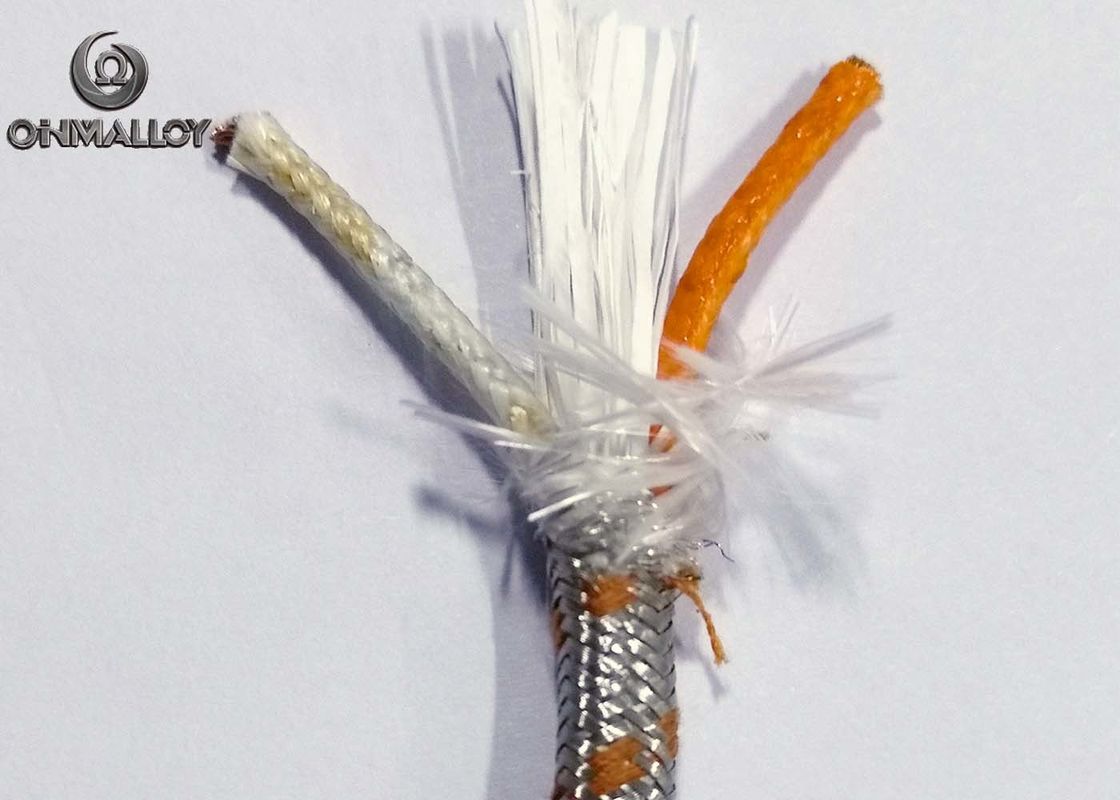

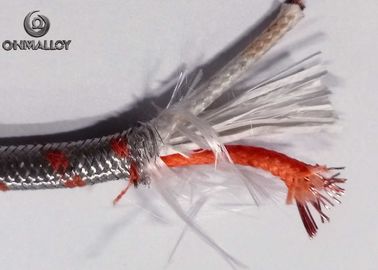

RX SX Thermocouple Extension Cable Fiberglass Stainless Steel Sheath Class I Accuracy 3 Years Warranty
OHMALLOY cable factory have 30 years in producing the thermocouple extension or compensation cable. We use our own thermocouple conductor to produce all kinds of insulated thermocouple wire and cable, Resistance Temperature Detector (RTD) cables. Working temperature range is -60℃ to +1100℃. According to customer request, we supply professional wire and cable solution.
Now OHMALLOY have all processing matching for braiding, extruding, wrapping, varnishing.... So we can make all cable with all insulation such as PVC, PTFE, Silicone rubber, fiberglass,
The MOQ for fiberglass insulated wire can be any length, even 5meters is ok.
For the insulation such as PVC, , we can supply 500meters as MOQ. That can help many customers on trial stage.

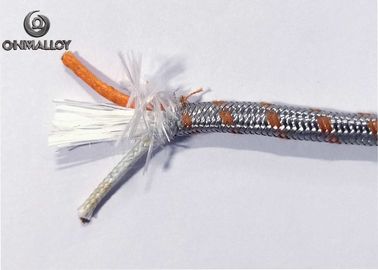

RX SX Thermocouple Extension Cable Fiberglass Stainless Steel Sheath Class I Accuracy 3 Years Warranty
Cable Specification | ||||
Item Name | Type RX/SX Extension Cable | |||
Conductor Material | +Copper -Copper Nickel | |||
Conductor Dia | 19/0.3mm(1.5mm2, ±0.01mm) | |||
Insulation and Thickness | Fiberglass(long term: 400℃ short term:500℃) 0.2mm | |||
Insulation Diameter | 2.0mm(±0.2mm) | |||
Jacket Material | Fiberglass(long term: 400℃ short term:500℃) 0.2mm | |||
Outer Sheath | SS304 Braiding | |||
Outer Insulated Diameter | 5.2*4.1mm(±0.2mm) | |||
Weight | 47KG/KM | |||
Color Code | IEC-584-3 (+Orange -White Overall:Orange Tracer) |
Insulation Material Reference
Insulation Code |
Insulation | Temperature Range of Insulation |
Abrasion Resistance |
Flexibility | Water Submersion |
|
Overall | Conductors | |||||
PP | PVC | PVC | -40 to 105oC -40 to 221oF |
Good | Excellent | Good |
FF | FEP® or Neoflon | FEP® | -200 to 200oC -338 to 392oF |
Excellent | Good | Excellent |
TT | PFA® or Neoflon | PFA® | -267 to 260oC -450 to 500oF |
Excellent | Good | Excellent |
TG | Glass Braid | PFA ® | -73 to260oC -100 to 500oF |
Good | Good | Excellent |
GG | Glass Braid | Glass Braid |
-73 to 482oC -100 to 900oF |
Poor | Good | Poor |
HH | High Temp Glass Braid | High Temp Glass Braid | 73 to 704oC -100 to 1300oF |
Poor | Good | Poor |
XS | Silicon | Silicon | -73 to 1038oC -100 to 1990oF |
Poor | Good | Poor |
TFE | TFE® | TFE ® | -267 to 260oC -450 to 500oF |
Excellent | Good | Excellent |
Package Reference
