KX Thermocouple Extension Type K Silicone Rubber Cable 7/0.2mm IEC584-3

I'm Online Chat Now
Certification
China Ohmalloy Material Co.,Ltd certification
China Ohmalloy Material Co.,Ltd certification
I search for Nichrome plate long time, and successfully bought it from Ohmalloy material. OHMALLOY provide real good service in alloy service and can always help me in finding the correct resistance alloy.

—— Mike Harness

OHMALLOY can provie me only 1kg Kovar alloy wire 1.0mm with short time, that is really amazing. Thanks

—— Janey

Really professional in thermocouple wire and cable, what i want just can get from OHMALLOY

—— Chris

Enamelled Constantan 0.08mm, i never expect to get only 2kg of it. But OHMALLOY supply it to me with good quality. God Jesus! Such a reliable supplier from china

—— Aaron

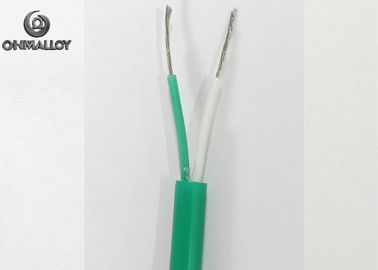

KX Thermocouple Extension Type K Silicone Rubber Cable 7/0.2mm IEC584-3

KX Thermocouple Extension Type K Silicone Rubber Cable 7/0.2mm IEC584-3
KX Thermocouple Extension Type K Silicone Rubber Cable 7/0.2mm IEC584-3 KX Thermocouple Extension Type K Silicone Rubber Cable 7/0.2mm IEC584-3 KX Thermocouple Extension Type K Silicone Rubber Cable 7/0.2mm IEC584-3 KX Thermocouple Extension Type K Silicone Rubber Cable 7/0.2mm IEC584-3

Large Image :  KX Thermocouple Extension Type K Silicone Rubber Cable 7/0.2mm IEC584-3 Get Best Price

Product Details:
Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: RoHS/CCC
Model Number: SP-K-SR-SR-0.22R
Payment & Shipping Terms:
Minimum Order Quantity: 500 meters
Packaging Details: Coil+plywood case
Delivery Time: 5-8 working days after payment confirmed
Payment Terms: L/C, T/T, , MoneyGram,paypal
Supply Ability: 30000 meters per month
Detailed Product Description
Name: KX Thermocouple Extension Type K Silicone Rubber Cable Conductor Material: +Chromel -Alumel

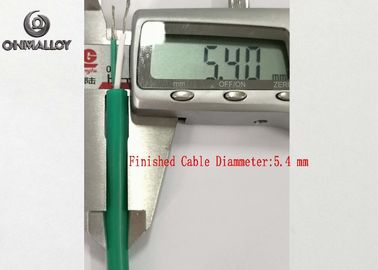

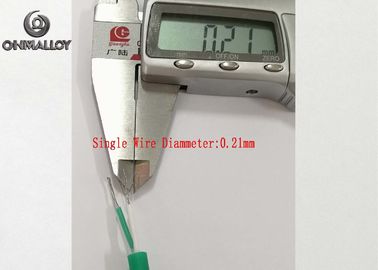

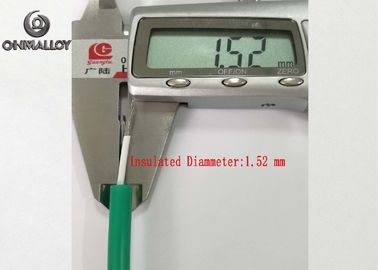

Conductor Size: 7 Strands Of 0.2mm Finished Cable Diameter: 5-6mm
Standard: IEC-584 Coating Material: Silicone Rubber
High Light:

k type thermocouple cable

,

thermocouple bare wire

,

thermocouple extension wire

KX Thermocouple Extension Type K Silicone Rubber Cable 7/0.2mm IEC584-3 0-200 Degree Celsiu



Product Name: Type K Silicone Rubber Thermocouple Extension Cable

Specification: 2X0.22mm2 (7/0.2mm) cable diameter: 5.5mm

Color code : + Green, -White, Overall:Green







Conductor Diameter



Insulation& Shielding material





Max.Temperature Insulation Material





Max.Temperature Conductor Material





EMF Value(MV)





100℃      200℃

Inner & Outer Insulation Overall
2X0.22 mm2 Silicone Rubber Silicone Rubber 200℃ 400℃   4.068      8.180
2X0.22 mm2 Qualified Qualified Qualified Qualified Class I   Qualified



Chemical Composition

Material Chemical composition (%)
Ni Cr Si Mn Al
KP(Chromel) 90 10
KN(Alumel) 95   1-2 0.5-1.5 1-1.5



The product matches 1ST tolerance class as per IEC 60 584.



KX Thermocouple Extension Type K Silicone Rubber Cable 7/0.2mm IEC584-3 0
