RTD PT100 Nickel Pleated Copper Extension Cable PFA Insulated SUS Sheath 6 Cores 2 Pairs

China RTD PT100 Nickel Pleated Copper Extension Cable PFA Insulated SUS Sheath 6 Cores 2 Pairs supplier
RTD PT100 Nickel Pleated Copper Extension Cable PFA Insulated SUS Sheath 6 Cores 2 Pairs supplier RTD PT100 Nickel Pleated Copper Extension Cable PFA Insulated SUS Sheath 6 Cores 2 Pairs supplier RTD PT100 Nickel Pleated Copper Extension Cable PFA Insulated SUS Sheath 6 Cores 2 Pairs supplier

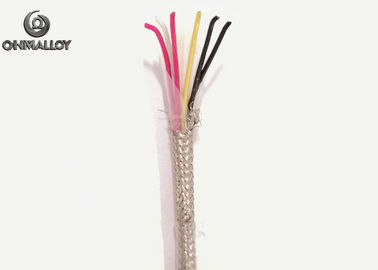

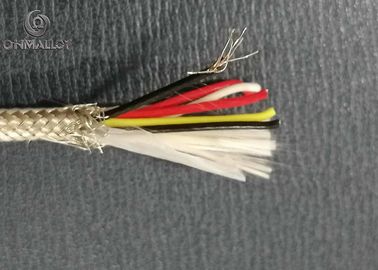

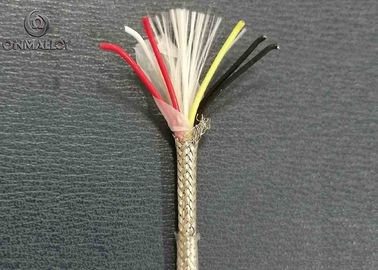

Large Image :  RTD PT100 Nickel Pleated Copper Extension Cable PFA Insulated SUS Sheath 6 Cores 2 Pairs

Product Details:

Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: RoHs/SGS
Model Number: SP-PT-PFA-SUS-PFA-6x7/0.15

Payment & Shipping Terms:

Minimum Order Quantity: 500 meters
Packaging Details: plywood spool+plywood case
Delivery Time: 5-8 working days after payment confirm
Payment Terms: L/C, T/T, Western Union, MoneyGram,Palpay
Supply Ability: 500000 meters per month
Contact Now
Detailed Product Description
Cable Type: RTD PT100 Conductor: Nickel Plated Copper/ Tinned Copper/Silver
Insulation Material: PFA(250 Degree Celcius) Sheath Material: SUS304/Tinned Copper/Nickel Plated Copper
Cable Shape: Round Or Flat Core: 6 Cores(2 Pairs)
Standard: ANSI/IEC/DIN/JIS Or Customized

RTD PT100 Nickel Pleated Copper Extension Cable PFA Insulated SUS Sheath 6 Cores 2 Pairs 250 Degree Celsius



PT100-3x7/0.15-PFA-SUS-PFA
Cable Specification
Item Name  RTD PT100 Extension Cable  RTD PT100 Nickel Pleated Copper Extension Cable PFA Insulated SUS Sheath 6 Cores 2 Pairs
Conductor Material  Nickel Plated Copper
Conductor Dia  7/0.15mm(0.13mm2, ±0.01mm)
Insulation and Thickness  PFA(long term: 250℃) 0.25mm
Insulation Diameter  0.89mm(±0.1mm)
Jacket Material  PFA(long term: 250℃) 0.3mm
Inner Sheath SUS304 Braiding(>90% covering)
Outer Insulated Diameter 3.1mm(±0.2mm)
Weight  26KG/KM
Color Code  IEC(or customized)



Material Code Reference



Type Insulation material CODE Inner Shielding CODE JACKET CODE Out shielding CODE Pairs solid Earth wire Stranded
K FEP FP     FEP FP     0 0.2mm E cross section+R
T PFA FA Al foil AL PFA FA copper wire CU 2 0.3mm
E PVC 70℃ LP copper wire CU PVC 70℃ LP Tinned copper TC 3 0.5mm
J PVC 105℃ HP Tinned copper TC PVC 105℃ HP Nickel plated copper NC 4 0.75mm
N Fiberglass 400℃ BL Nickel plated copper NC Fiberglass 400℃ BL Silver plated copper AC 5 1.0mm
SC Fiberglass600℃ BM Silver plated copper AC Fiberglass600℃ BM SS 304 wire SS 6 1.5mm
  Fiberglass700℃ BH     Fiberglass700℃ BH
  MICA FIBER 650℃ MA
KCA Vitreous Silica 800℃ VS SS 304 wire SS Vitreous Silica 800℃ VS     7 2.5mm
KCB Silica fiber1000℃ SV Inconel 600 wire 600 Silica fiber1000℃ SV     8
RTD Ceramic fiber1200℃ CF Inconel 625 wire 625 Ceramic fiber1200℃ CF     9
  PTFE PT     PTFE PT
  ETFE ET     ETFE ET
  KAPTON KP     KAPTON KP
  Silcone rubber SR     Silcone rubber SR
  Rubber RU     Rubber RU
  PE PE     PE PE



Package Reference



RTD PT100 Nickel Pleated Copper Extension Cable PFA Insulated SUS Sheath 6 Cores 2 Pairs
