Becu Beryllium Copper Strip C17200 XHM State Hard Springs Material

China Becu Beryllium Copper Strip C17200 XHM State Hard Springs Material supplier
Becu Beryllium Copper Strip C17200 XHM State Hard Springs Material supplier Becu Beryllium Copper Strip C17200 XHM State Hard Springs Material supplier Becu Beryllium Copper Strip C17200 XHM State Hard Springs Material supplier

Large Image :  Becu Beryllium Copper Strip C17200 XHM State Hard Springs Material

Product Details:

Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: RoHs
Model Number: SP-BeCu-strip

Payment & Shipping Terms:

Minimum Order Quantity: 50 KG
Price: USD28-45 per KG
Packaging Details: Plywood case
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 5 tons per month
Contact Now
Detailed Product Description
Name: Becu Beryllium Copper Strip C17200 XHM State Hard Springs Material Brand: JIS C1720
Temper: OM /1/4HM/1/2HM/HM/XHM/XMHS Tensile Strength: 410-1400 N/mm2
Elongation: 2-35% Composition: Cu+Be+Co+Fe ≥99.5

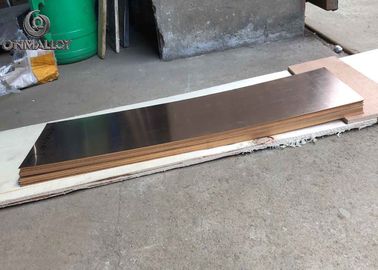

Becu Beryllium Copper Strip C17200 XHM State Hard Springs Material



Cube2--C17200  Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 200 ksi, while the hardness approaches Rockwell C45.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.



Typical Application for C17200 Beryllium Copper Alloys:

Electrical Industry: Electrical Switch and Relay Blades, Fuse Clips, Switch Parts, Relay parts, Connectors, Spring Connectors, Contact Bridges, Belleville Washers, Navigational Instruments, Clips
Fasteners: Washers, Fasteners, Lock Washers, Retaining Rings, Roll Pins, Screws, Bolts
Industrial: Pumps, Springs, Electrochemical, Shafts, Non Sparking Safety Tools, Flexible Metal Hose, Housings for Instruments, Bearings, Bushings, Valve Seats, Valve Stems, Diaphragms, Springs, Welding Equipment, Rolling Mill Parts, Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Wear. Plates on Heavy Equipment, Bellows
Available Sizes:
Custom Diameter & Sizes, Random Mill lengths
Available Products (forms):
Round bars, Round strips, Round wires, Round tube,
Flat bars, Square bars, Rectangular bars, Hexagon bars, Plates, Sheets, Coils
Custom shapes are available upon request.

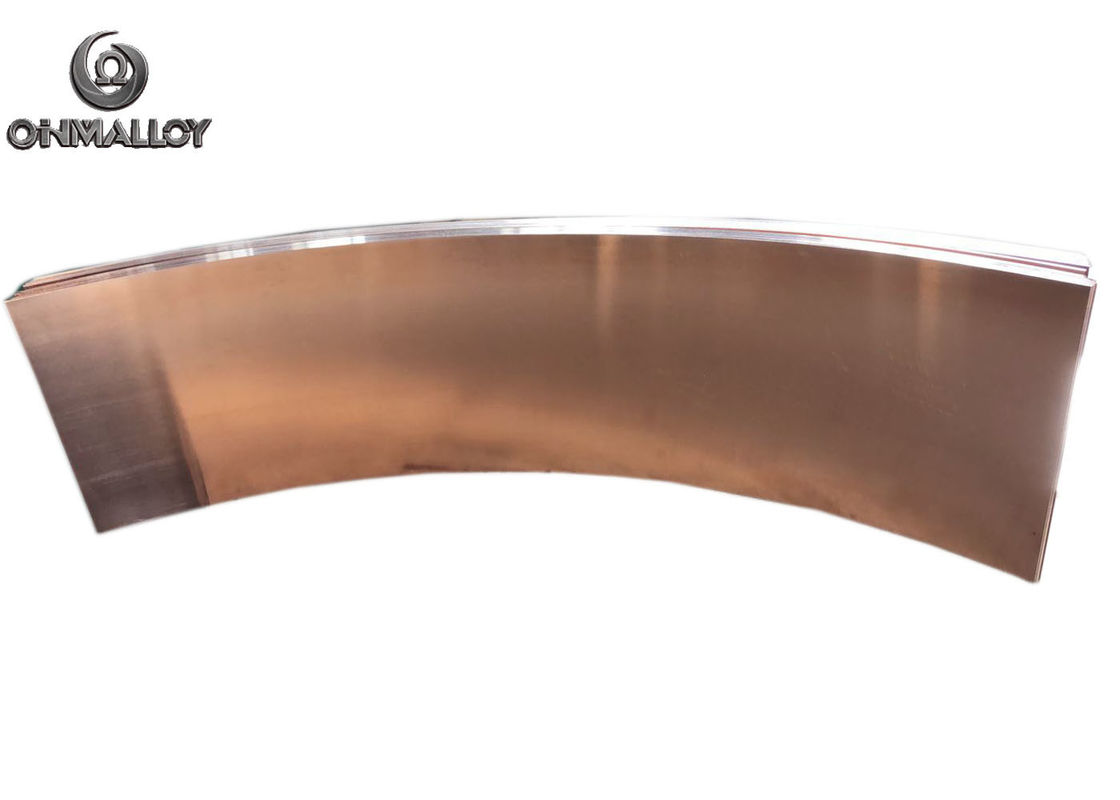

Becu Beryllium Copper Strip C17200 XHM State Hard Springs Material



Beryllium copper strip Mechanical Properties



Symbol or Brands Chemical Composition Temper Tensile Strength (N/mm2) Elongation (%) Endurance Vickers Hardness (HV) Electric Conductivity (%IACS)
C1720 Be:1.8-2.0 Ni+Co≥0.20 Ni+Co+Fe≤0.6 Cu+Be+Co+Fe ≥99.5 Before age-hardening
O 410-540 ≥35 - 90-160 ≥17
1/4H 510-620 ≥10 - 45-220 ≥16
1/2H 590-695 ≥5 - 180-240 ≥15
H 685-835 ≥2 - 210-270 ≥15
After age-hardening
OT 1100-1380 ≥3 ≥960 325-400 ≥22
1/4HT 1180-1400 ≥2 ≥1030 350-430
1/2HT 1240-1440 ≥2 ≥1100 360-440
HT 1270-1480 ≥1 ≥1140 380-450
Spread(Standard)
OM 685-885 ≥18 ≥480 220-270 ≥17
1/4HM 735-930 ≥10 ≥550 235-285
1/2HM 815-1010 ≥8 ≥650 260-310
HM 910-1110 ≥6 ≥750 295-345
XHM 1100-1290 ≥2 ≥930 340-390
XMHS 1210-1400 ≥2 ≥1030 360-410
