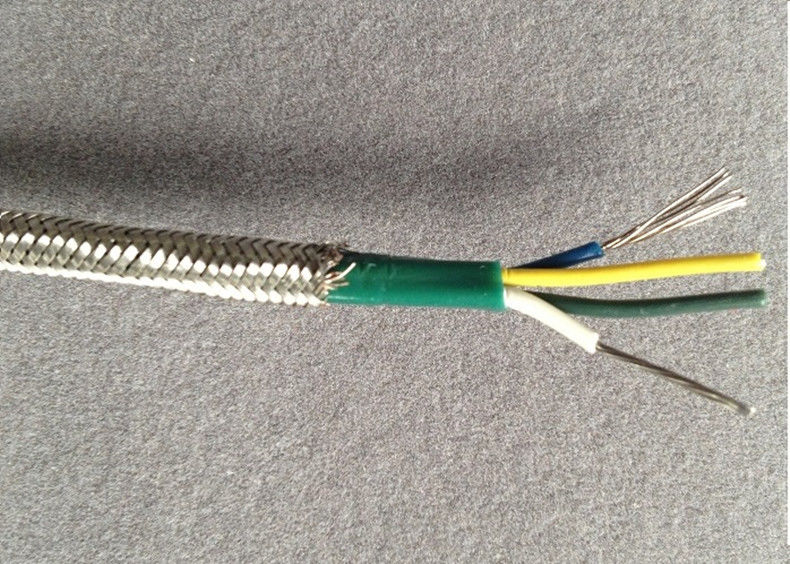

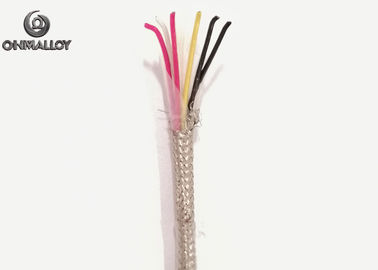

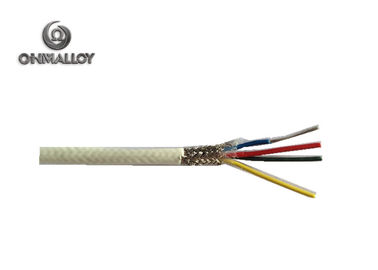

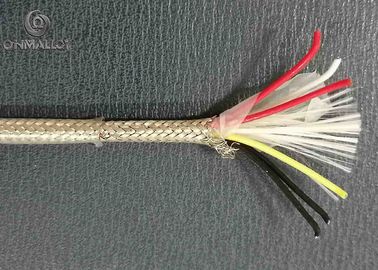

PT100 Rtd Thermocouple Cable With Stainless Steel / FEP Kapton Cable ANSI IEC

Certification
Good quality Bimetallic Strip for sales
Good quality Bimetallic Strip for sales
I search for Nichrome plate long time, and successfully bought it from Ohmalloy material. OHMALLOY provide real good service in alloy service and can always help me in finding the correct resistance alloy.

—— Mike Harness

OHMALLOY can provie me only 1kg Kovar alloy wire 1.0mm with short time, that is really amazing. Thanks

—— Janey

Really professional in thermocouple wire and cable, what i want just can get from OHMALLOY

—— Chris

Enamelled Constantan 0.08mm, i never expect to get only 2kg of it. But OHMALLOY supply it to me with good quality. God Jesus! Such a reliable supplier from china

—— Aaron

I'm Online Chat Now

PT100 Rtd Thermocouple Cable With Stainless Steel / FEP Kapton Cable ANSI IEC

China PT100 Rtd Thermocouple Cable With Stainless Steel / FEP Kapton Cable ANSI IEC supplier
PT100 Rtd Thermocouple Cable With Stainless Steel / FEP Kapton Cable ANSI IEC supplier PT100 Rtd Thermocouple Cable With Stainless Steel / FEP Kapton Cable ANSI IEC supplier PT100 Rtd Thermocouple Cable With Stainless Steel / FEP Kapton Cable ANSI IEC supplier PT100 Rtd Thermocouple Cable With Stainless Steel / FEP Kapton Cable ANSI IEC supplier PT100 Rtd Thermocouple Cable With Stainless Steel / FEP Kapton Cable ANSI IEC supplier

Large Image :  PT100 Rtd Thermocouple Cable With Stainless Steel / FEP Kapton Cable ANSI IEC

Product Details:

Place of Origin: CHINA
Brand Name: OHMALLOY
Certification: ISO CE ROSH
Model Number: RTD PT100

Payment & Shipping Terms:

Minimum Order Quantity: 300
Packaging Details: coil
Delivery Time: 5-8work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000m/week
Contact Now
Detailed Product Description
Type: PT100,RTD Application: Electrical Equipment
Insulation Material: PVC,Fiberglass,PFA,Silicone Rubber Temperature Range: -200~1200
Theory: Temperature Sensor,Thermocouple Sensor Model: RTD PT100

PT100 Rtd Thermocouple Cable With Stainless Steel / FEP Kapton Cable ANSI IEC



1. Specifications:
1. Style:Compensation Wire
2. Thermocouple RTD wire
Thermocouple RTD wire Classification
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.
Thermocouple variety and index




Thermocouple Variety and Index

Variety

Type

Measurement Range(°C)

NiCr-NiSi

K

-200-1300

NiCr-CuNi

E

-200-900

Fe-CuNi

J

-40-750

Cu-CuNi

T

-200-350

NiCrSi-NiSi

N

-200-1300

NiCr-AuFe0.07

NiCr-AuFe0.07

-270-0

2. Dimensions and Tolerance of Fiberglass Insulated Thermocouple Wire
Dimensions / Tolerance mm ) : 4.0+-0.25
Color code & initial calibration tolerances for thermocouple wire:

Thermocouple Type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration +/-
Conductor
Jacket Temperature Range Standard
Limits
Special
Limits
Iron(+) vs.
Constantan(-)
J White/Red Brown 0°C to +285°C
285°C to +750°C
±2.2°C
± .75%
±1.1°C
± .4%
CHROMEL(+) vs.
ALUMEL(-)
K Yellow/Red Brown -200°C to -110°C
-110°C to 0°C
0°C to +285°C
285°C to +1250°C
± 2%
±2.2°C
±2.2°C
± .75%
±1.1°C
± .4%
Copper(+) vs.
Constantan(-)
T Blue/Red Brown -200°C to -65°C
-65°C to +130°C
130°C to +350°C
± 1.5%
±1°C
± .75%
± .8%
± .5°C
± .4%
CHROMEL(+) vs.
Constantan(-)
E Purple/Red Brown -200°C to -170°C
-170°C to +250°C
250°C to +340°C
340°C+900°C
± 1%
±1.7°C
±1.7°C
± .5%
±1°C
±1°C
± .4%
± .4%


Color Code & Initial Calibration Tolerance for Extension Wire:

Extension type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration +/-
Conductor
Jacket Temperature Range Standard
Limits
Special
Limits
Iron (+) vs. Constantan(-) JX White/Red Black 0°C to +200°C ±2.2°C ±1.1°C
CHROMEL (+) vs. ALUMEL (-) KX Yellow/Red Yellow 0°C to +200°C ±2.2°C ±1.1°C
Copper(+) vs. Constantan(-) TX Blue/Red Blue -60°C to +100°C ±1.1°C ± .5°C
CHROMEL(+) vs. Constantan(-) EX Purple/Red Purple 0°C to +200°C ±1.7°C ±1.1°C


3. Size and Insulation Material Reference

Size and Insulation Material Reference
Type Cross-Section
(mm2)
Diameter Insulation Material/ Jacket Material Shield
AWG (SingleCore) mm
(Multi-Core)
SC RC BC KCA KCB KX NC NX EX JX LX 0.07 - 1 x 0.30 Ceramic Fiber(-60,+1200ºC) Vitreous Silica(-60,+800ºC) Mica(-60,+650ºC) Silica Fiber(-60,+1000ºC) High Temperature Fiber(-60,+600ºC) Fiberglass(-60,+450ºC) PolyimideTape/Kapton(-60,+260ºC) PTFE(-60,+275ºC) PFA(-60,+275ºC) FEP(-60,+205ºC) SiliconeRubber(-60,+200ºC) PVC(-25,+105ºC) PVC(-25,+70ºC) Nickel Chrome Alloy Wire Braiding; Stainless Steel Braiding; Tin-plated Copper Braiding; Aluminum-plastic Tape Wraping; Copper Tape Wraping; Aluminum Foil Wraping
