| Name: | Round TC Cable Type BX RX | Conductor Type: | Pure Copper/Nickel Plated Copper/Tinned Copper/Sliver Plated Copper |
|---|---|---|---|
| Size: | 1.5R（19/0.3mm） | Insulation: | Fiberglass（400/600/800/1000/1200 Degree Celsius） |
| Sheath Material: | SS304/Copper/Tinnned Copper | Warranty: | 3 Year |

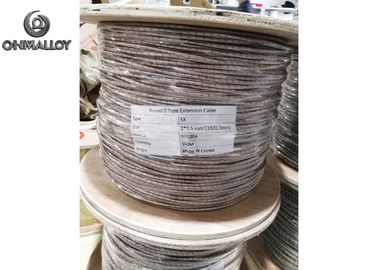

| Package: | 500meter/Spool(plywood Spool) | ||
| High Light: | k type thermocouple cable,thermocouple bare wire,thermocouple extension wire |
||

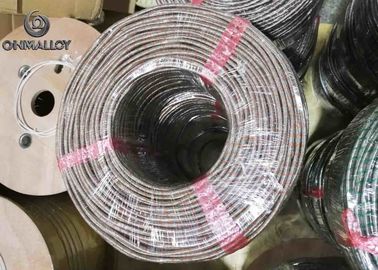

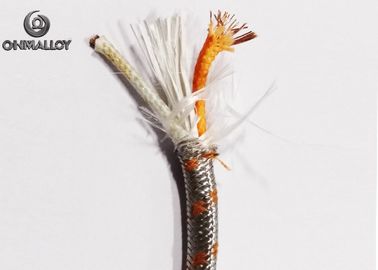

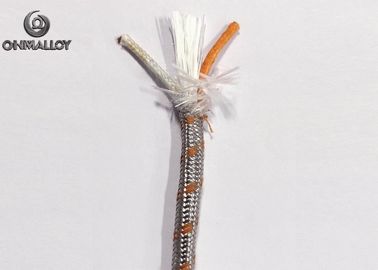

Round TC Cable Type BX RX Fiberglass Insulated SS304 Sheath ANSI IEC Standard
| Cable Specification | ||||
| Item Name | Type RX/SX Extension Cable |  |
||
| Conductor Material | +Copper -Copper Nickel | |||
| Conductor Dia | 19/0.3mm(1.5mm2, ±0.01mm) | |||
| Insulation and Thickness | Fiberglass(long term: 400℃ short term:500℃) 0.2mm | |||
| Insulation Diameter | 2.0mm(±0.2mm) | |||
| Jacket Material | Fiberglass(long term: 400℃ short term:500℃) 0.2mm | |||
| Outer Sheath | SS304 Braiding | |||
| Outer Insulated Diameter | 5.2*4.1mm(±0.2mm) | |||
| Weight | 47KG/KM | |||
| Color Code | IEC-584-3 (+Orange -White Overall:Orange Tracer) | |||
For the extension/compensation cable, the basic structure is conductor and insulation.
To increase its temperature bearing ability and to install easily, jacket is applicable.
In the working environment, there are too much factors will interference the EMF signal, therefore shield layer is practical way to prevent the cable from interference caused by complex environment.
Reference. The Short Name for Insulation Materials
| Type | Insulation material | CODE | Inner Shielding | CODE | JACKET | CODE |
| K | FEP | FP | FEP | FP | ||
| T | PFA | FA | Al foil | AL | PFA | FA |
| E | PVC 70℃ | LP | copper wire | CU | PVC 70℃ | LP |
| J | PVC 105℃ | HP | Tinned copper | TC | PVC 105℃ | HP |
| N | Fiberglass 400℃ | BL | Nickel plated copper | NC | Fiberglass 400℃ | BL |
| SC | Fiberglass600℃ | BM | Silver plated copper | AC | Fiberglass600℃ | BM |
| Fiberglass700℃ | BH | Fiberglass700℃ | BH | |||
| MICA FIBER 650℃ | MA | |||||
| KCA | Vitreous Silica 800℃ | VS | SS 304 wire | SS | Vitreous Silica 800℃ | VS |
| KCB | Silica fiber1000℃ | SV | Inconel 600 wire | 600 | Silica fiber1000℃ | SV |
| RTD | Ceramic fiber1200℃ | CF | Inconel 625 wire | 625 | Ceramic fiber1200℃ | CF |
| PTFE | PT | PTFE | PT | |||
| ETFE | ET | ETFE | ET | |||
| KAPTON | KP | KAPTON | KP | |||
| Silicone rubber | SR | Silicone rubber | SR | |||
| Rubber | RU | Rubber | RU | |||
| PE | PE | PE | PE |
