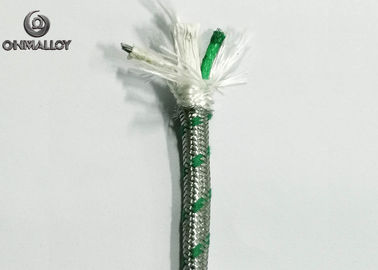

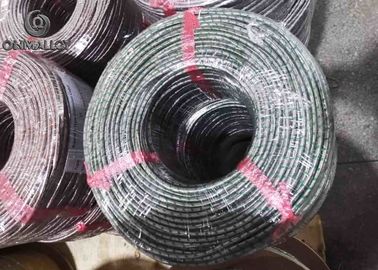

Type K Thermocouple Extension Cable Fiberglass Insulation 49KG/KM Weight

China Type K Thermocouple Extension Cable Fiberglass Insulation 49KG/KM Weight supplier
Type K Thermocouple Extension Cable Fiberglass Insulation 49KG/KM Weight supplier Type K Thermocouple Extension Cable Fiberglass Insulation 49KG/KM Weight supplier Type K Thermocouple Extension Cable Fiberglass Insulation 49KG/KM Weight supplier Type K Thermocouple Extension Cable Fiberglass Insulation 49KG/KM Weight supplier

Large Image :  Type K Thermocouple Extension Cable Fiberglass Insulation 49KG/KM Weight

Product Details:

Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: ISO9001
Model Number: SP-KX-FB-FB-SS304-1.5R

Payment & Shipping Terms:

Minimum Order Quantity: 100 meter

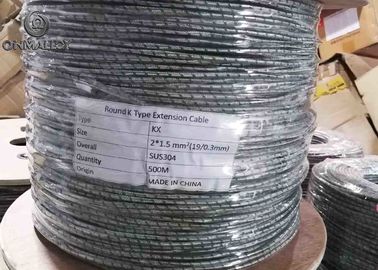

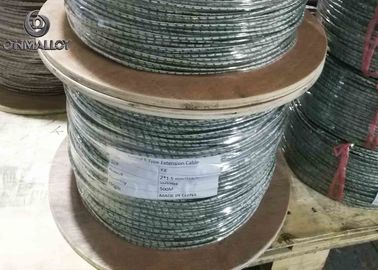

Packaging Details: plywood spool+plywood case
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 80000 meter per month
Contact Now
Detailed Product Description
Name: Type K Thermocouple Extension Cable Size: 1.5R(19/0.3mm)
Insulation: Fiberglass(400/600/800/1000/1200 Degree Celsius) Sheath Material: SS304/Copper/Tinnned Copper
Color Code: ANSI/IEC/JIS/DIN/BS Cunstomized Service: Color, Insulation,package
MOQ For Customize: 500 Meter

Type K Thermocouple Extension Cable ANSI IEC JIS Standard SS304 Sheath Fiberglass




Cable Specification
Item Name Type KX Extension Cable  Type K Thermocouple Extension Cable Fiberglass Insulation 49KG/KM Weight
Conductor Material +Chromel -Alumel
Conductor Dia 19/0.3mm(1.5mm2, ±0.01mm)
Insulation and Thickness Fiberglass(long term: 400℃ short term:500℃) 0.2mm
Insulation Diameter 2.0mm(±0.2mm)
Jacket Material Fiberglass(long term: 400℃ short term:500℃) 0.2mm
Outer Sheath SS304 Braiding
Outer Insulated Diameter 5.2*4.1mm(±0.2mm)
Weight 49KG/KM
Color Code IEC-584-3 (+Green -White Overall:Green Tracer)





Type K Thermocouple Extension Cable Fiberglass Insulation 49KG/KM Weight





For the extension/compensation cable, the basic structure is conductor and insulation.

To increase its temperature bearing ability and to install easily, jacket is applicable.



In the working environment, there are too much factors will interference the EMF signal, therefore shield layer is practical way to prevent the cable from interference caused by complex environment.



Reference. The Short Name for Insulation Materials



Type Insulation material CODE Inner Shielding CODE JACKET CODE
K FEP FP     FEP FP
T PFA FA Al foil AL PFA FA
E PVC 70℃ LP copper wire CU PVC 70℃ LP
J PVC 105℃ HP Tinned copper TC PVC 105℃ HP
N Fiberglass 400℃ BL Nickel plated copper NC Fiberglass 400℃ BL
SC Fiberglass600℃ BM Silver plated copper AC Fiberglass600℃ BM
  Fiberglass700℃ BH     Fiberglass700℃ BH
  MICA FIBER 650℃ MA
KCA Vitreous Silica 800℃ VS SS 304 wire SS Vitreous Silica 800℃ VS
KCB Silica fiber1000℃ SV Inconel 600 wire 600 Silica fiber1000℃ SV
RTD Ceramic fiber1200℃ CF Inconel 625 wire 625 Ceramic fiber1200℃ CF
  PTFE PT     PTFE PT
  ETFE ET     ETFE ET
  KAPTON KP     KAPTON KP
  Silicone rubber SR     Silicone rubber SR
  Rubber RU     Rubber RU
  PE PE     PE PE



Thermocouple Cable Grade

A:Extension Grade Cable

Whose wire composition is totally as the same as the thermocouple wire, remarked by the letter“X”after the thermocouple symbol number, such as“KX”“JX”“TX”

B:Compensation Grade Cable

Whose wire composition is different from the thermocouple wire, but its wire electromotive force (EMF) value is the same as thermocouple wire only at 0-100℃ or 0-200℃. It remarked by the letter“C”after the thermocouple symbol number, such as“KC”“JC”“TC”

  1. For cost consideration, when the tested temperature under 200℃, compensation grade cable is preferred. But compensation grade cable will occur enormous tested temperature value deviation if the tested temperature above 200℃. The higher the tested temperature, the greater deviation be.
  2. For compensation grade cable, the max testing temperature is less than 200℃, the bigger the cable, the smaller the signal loss.
  3. Extension cable and compensation cable comparison:



Performance Extension Grade Compensation Grade
Material Same as thermocouple Different from thermocouple
EMF Value Feature Same as the thermocouple’s at certain temperature range Same as the thermocouple’s
Deviation Curve Nonlinear, varies with temperature Linear
Working Temperature Range Limited(usual at 100℃) Unlimited(depend on insulation material temperature bearing)
Line Resistance Low resistance High resistance
Compensation Contact Interference Different contactor material may cause interference None
Accuracy Low High
Price Low High(about 1-2 times higher)
