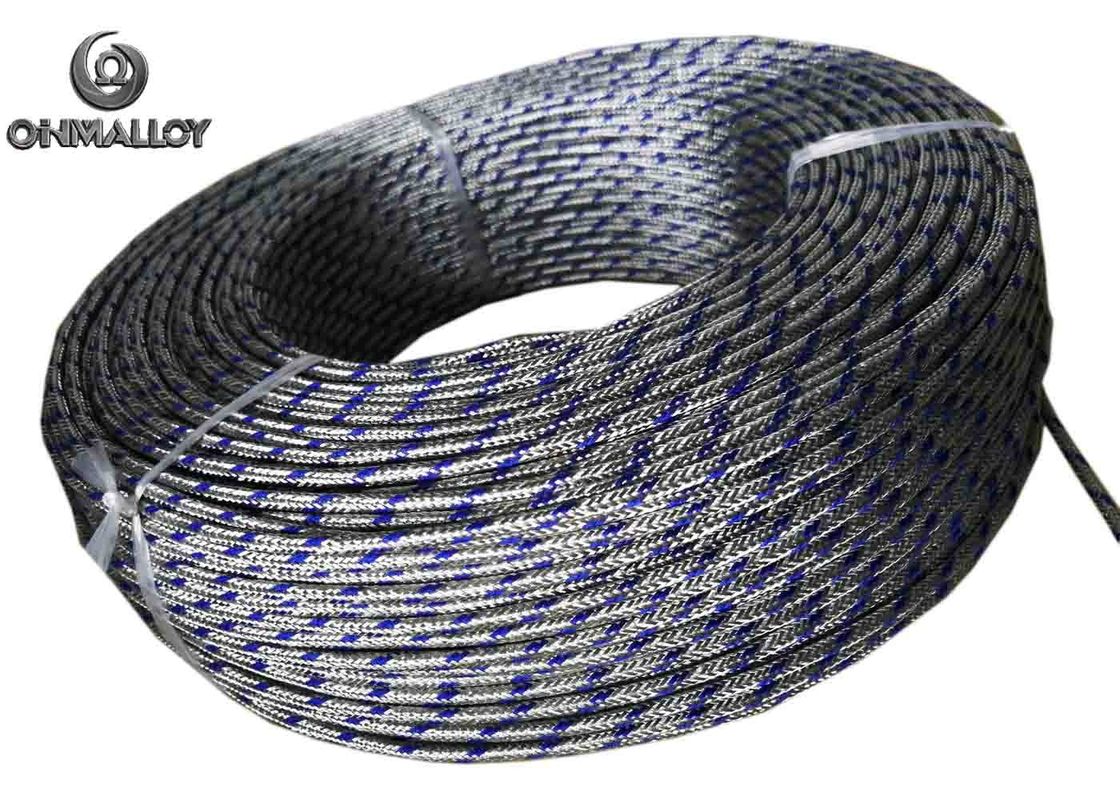

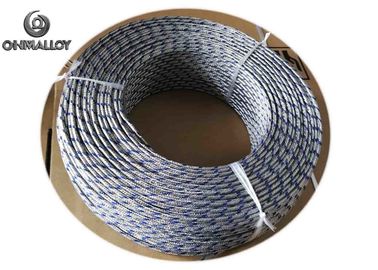

Precision Extension Thermocouple Wire Fiberglass Insulation 3 Years Warranty

China Precision Extension Thermocouple Wire Fiberglass Insulation 3 Years Warranty supplier
Precision Extension Thermocouple Wire Fiberglass Insulation 3 Years Warranty supplier Precision Extension Thermocouple Wire Fiberglass Insulation 3 Years Warranty supplier Precision Extension Thermocouple Wire Fiberglass Insulation 3 Years Warranty supplier Precision Extension Thermocouple Wire Fiberglass Insulation 3 Years Warranty supplier Precision Extension Thermocouple Wire Fiberglass Insulation 3 Years Warranty supplier

Large Image :  Precision Extension Thermocouple Wire Fiberglass Insulation 3 Years Warranty

Product Details:

Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: ISO9001
Model Number: SP-JX-FB-FB-SS304-0.22R

Payment & Shipping Terms:

Minimum Order Quantity: 100 meter

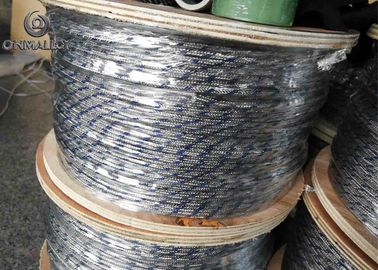

Packaging Details: plywood spool+plywood case
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 80000 meter per month
Contact Now
Detailed Product Description
Name: Thermocouple Extension Cable JX-FB-FB-SS304-0.22R Conductor Type: + Iron -Constantan
Size: 0.22R(7/0.2mm) Insulation: Fiberglass(400 Degree Celsius)
Sheath Material: SS304/Copper/Tinnned Copper Warranty: 3 Years
Application: Thermocouple Extension Cable Package: Plywood Spool+ Plywood Case

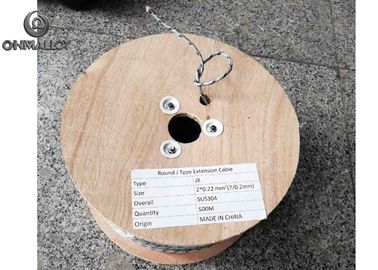

Thermocouple Extension Cable JX-FB-FB-SS304-0.22R DIN43710 Standard Plywood Spool Package



TYPE J (Iron vs Constantan) is used in vacuum, oxidizing, inert or reducing atmospheres. Iron element oxidizes rapidly at temperatures exceeding 538°C, and therefore heavier gauge wire is recommended for longer life at these temperatures.



1. Chemical Composition

Material Chemical composition (%)
Ni Cu Si Iron Al
JP(Iron)       100
JN(Constantan) 45 55



2. Physical Properties and Mechnical Properties





Material





Density(g/cm3)



Melting point(℃)



Tensile Strength(Mpa)



Volume resistivity(μΩ.cm)



Elongation rate (%)

JP(Iron) 7.8 1402 >240 12.0(20℃) >20
JN(Constantan) 8.8 1220 >390 49.0(20℃) >25



3. EMF Value Range at Different Temperature



Material EMF value (μV)
100℃ 200℃ 300℃ 400℃ 500℃ 600℃
JP-JN 5187~5351 10696~10862 16244~16410 21760~21936 27281~27505 32962~33242
EMF value Vs Pt(μV)
700℃ 750℃ 760℃ 800℃ 900℃ 1000℃
38958~39306 42089~42473 42725~43113







Thermocouple Cable Grade

A: Extension Grade Cable

Whose wire composition is totally as the same as the thermocouple wire, remarked by the letter“X”after the thermocouple symbol number, such as“KX”“JX”“TX”

B: Compensation Grade Cable

Whose wire composition is different from the thermocouple wire, but its wire electromotive force (EMF) value is the same as thermocouple wire only at 0-100℃ or 0-200℃. It remarked by the letter“C”after the thermocouple symbol number, such as“KC”“JC”“TC”

  1. For cost consideration, when the tested temperature under 200℃, compensation grade cable is preferred. But compensation grade cable will occur enormous tested temperature value deviation if the tested temperature above 200℃. The higher the tested temperature, the greater deviation be.
  2. For compensation grade cable, the max testing temperature is less than 200℃, the bigger the cable, the smaller the signal loss.
  3. Extension cable and compensation cable comparison:



    Performance

Extension Grade Compensation Grade

Material

Same as thermocouple Different from thermocouple
EMF Value Feature Same as the thermocouple’s at certain temperature range Same as the thermocouple’s
Deviation Curve Nonlinear, varies with temperature

  Linear

Working Temperature Range Limited(usual at 100℃) Unlimited(depend on insulation material temperature bearing)
Line Resistance Low resistance High resistance
Compensation Contact Interference Different contactor material may cause interference

None

Accuracy

Low

High

Price

Low

High(about 1-2 times higher)



Precision Extension Thermocouple Wire Fiberglass Insulation 3 Years Warranty

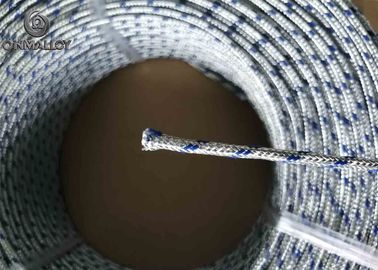

For the extension/compensation cable, the basic structure is conductor and insulation.

To increase its temperature bearing ability and to install easily, jacket is applicable.



In the working environment, there are too much factors will interference the EMF signal, therefore shield layer is practical way to prevent the cable from interference caused by complex environment.
