Small Diameter Type T Extension Cable PFA Tape With ANSI Standard ISO9001

Small Diameter Type T Extension Cable PFA Tape With ANSI Standard ISO9001
Small Diameter Type T Extension Cable PFA Tape With ANSI Standard ISO9001 Small Diameter Type T Extension Cable PFA Tape With ANSI Standard ISO9001 Small Diameter Type T Extension Cable PFA Tape With ANSI Standard ISO9001 Small Diameter Type T Extension Cable PFA Tape With ANSI Standard ISO9001

Large Image :  Small Diameter Type T Extension Cable PFA Tape With ANSI Standard ISO9001 Get Best Price

Product Details:
Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: ISO9001
Model Number: SP-TX-FA-KP-KP-0.22R
Payment & Shipping Terms:
Minimum Order Quantity: 100 meter
Packaging Details: plywood spool+plywood case
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, , MoneyGram,Paypal
Supply Ability: 80000 meter per month
Detailed Product Description

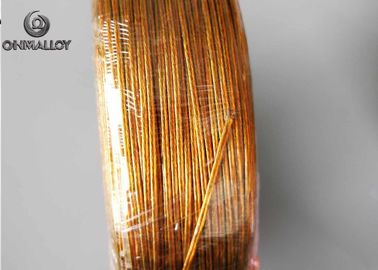

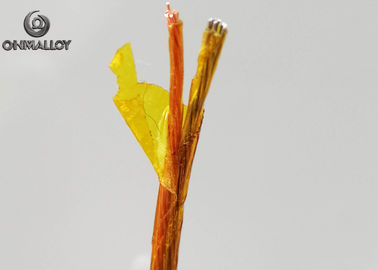

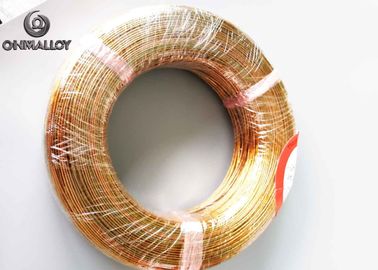

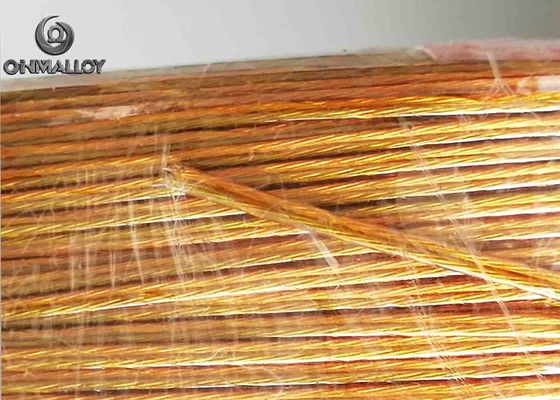

Name: Kapton Type T Extension Cable PFA Tape Backaed Conductor Type: + Copper -Constantan
Size: 0.22R(7/0.2mm) Insulation: Kapton+PFA Tape
Application: Thermocouple Extension Cable Package: Plywood Spool+ Plywood Case
Feature: Small Diameter
High Light:

k type thermocouple cable

,

thermocouple bare wire

,

thermocouple extension wire

Kapton Type T Extension Cable PFA Tape Backaed ANSI Standard Color Small Diameter



TYPE T (Copper vs Constantan) is used or service in oxidizing, inert or reducing atmospheres or in vacuum. It is highly resistant to corrosion from atmospheric moisture and condensation and exhibits high stability at low temperatures. It is the only type with limits of error guaranteed for cryogenic temperatures.



1. Chemical Composition

Material Chemical composition (%)
Ni Cu Si Iron Al
TP(Copper)   100
TN(Constantan) 45 55



2. Physical Properties and Mechnical Properties





Material





Density(g/cm3)



Melting point(℃)



Tensile Strength(Mpa)



Volume resistivity(μΩ.cm)



Elongation rate (%)

TP(Copper) 8.9 1084 >196 1.71(20℃) >30
TN(Constantan) 8.8 1220 >390 49.0(20℃) >25





Thermocouple Cable Grade

A: Extension Grade Cable

Whose wire composition is totally as the same as the thermocouple wire, remarked by the letter“X”after the thermocouple symbol number, such as“KX”“JX”“TX”

B: Compensation Grade Cable

Whose wire composition is different from the thermocouple wire, but its wire electromotive force (EMF) value is the same as thermocouple wire only at 0-100℃ or 0-200℃. It remarked by the letter“C”after the thermocouple symbol number, such as“KC”“JC”“TC”



    Performance

Extension Grade Compensation Grade

Material

Same as thermocouple Different from thermocouple
EMF Value Feature Same as the thermocouple’s at certain temperature range Same as the thermocouple’s
Deviation Curve Nonlinear, varies with temperature

  Linear

Working Temperature Range Limited(usual at 100℃) Unlimited(depend on insulation material temperature bearing)
Line Resistance Low resistance High resistance
Compensation Contact Interference Different contactor material may cause interference

None

Accuracy

Low

High

Price

Low

High(about 1-2 times higher)



Small Diameter Type T Extension Cable PFA Tape With ANSI Standard ISO9001 0





For the extension/compensation cable, the basic structure is conductor and insulation.

To increase its temperature bearing ability and to install easily, jacket is applicable.



In the working environment, there are too much factors will interference the EMF signal, therefore shield layer is practical way to prevent the cable from interference caused by complex environment.



ReF. The Short Name for Materials



Type Insulation material CODE Inner Shielding CODE JACKET CODE
K FEP FP     FEP FP
T PFA FA Al foil AL PFA FA
E PVC 70℃ LP copper wire CU PVC 70℃ LP
J PVC 105℃ HP Tinned copper TC PVC 105℃ HP
N Fiberglass 400℃ BL Nickel plated copper NC Fiberglass 400℃ BL
SC Fiberglass600℃ BM Silver plated copper AC Fiberglass600℃ BM
  Fiberglass700℃ BH     Fiberglass700℃ BH
  MICA FIBER 650℃ MA
KCA Vitreous Silica 800℃ VS SS 304 wire SS Vitreous Silica 800℃ VS
KCB Silica fiber1000℃ SV Inconel 600 wire 600 Silica fiber1000℃ SV
RTD Ceramic fiber1200℃ CF Inconel 625 wire 625 Ceramic fiber1200℃ CF
  PTFE PT     PTFE PT
  ETFE ET     ETFE ET
  KAPTON KP     KAPTON KP
  Silicone rubber SR     Silicone rubber SR
  Rubber RU     Rubber RU
  PE PE     PE PE
