Extension Thermocouple Wire Type E Cable ANSI Sheath With Grounded High Accuracy

Certification
Good quality Bimetallic Strip for sales
Good quality Bimetallic Strip for sales
I search for Nichrome plate long time, and successfully bought it from Ohmalloy material. OHMALLOY provide real good service in alloy service and can always help me in finding the correct resistance alloy.

—— Mike Harness

OHMALLOY can provie me only 1kg Kovar alloy wire 1.0mm with short time, that is really amazing. Thanks

—— Janey

Really professional in thermocouple wire and cable, what i want just can get from OHMALLOY

—— Chris

Enamelled Constantan 0.08mm, i never expect to get only 2kg of it. But OHMALLOY supply it to me with good quality. God Jesus! Such a reliable supplier from china

—— Aaron

I'm Online Chat Now

Extension Thermocouple Wire Type E Cable ANSI Sheath With Grounded High Accuracy

China Extension Thermocouple Wire Type E Cable ANSI Sheath With Grounded High Accuracy supplier
Extension Thermocouple Wire Type E Cable ANSI Sheath With Grounded High Accuracy supplier Extension Thermocouple Wire Type E Cable ANSI Sheath With Grounded High Accuracy supplier Extension Thermocouple Wire Type E Cable ANSI Sheath With Grounded High Accuracy supplier Extension Thermocouple Wire Type E Cable ANSI Sheath With Grounded High Accuracy supplier Extension Thermocouple Wire Type E Cable ANSI Sheath With Grounded High Accuracy supplier

Large Image :  Extension Thermocouple Wire Type E Cable ANSI Sheath With Grounded High Accuracy

Product Details:

Place of Origin: Shanghai
Brand Name: OHMALLOY/OEM
Certification: RoHS
Model Number: SP-EX-FA-AL+D-FA-1.5R-ANSI

Payment & Shipping Terms:

Minimum Order Quantity: 500 meters
Packaging Details: Coil+plywood case
Delivery Time: 5-15working days after payment confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram,paypal
Supply Ability: 300000 meters per month
Contact Now
Detailed Product Description

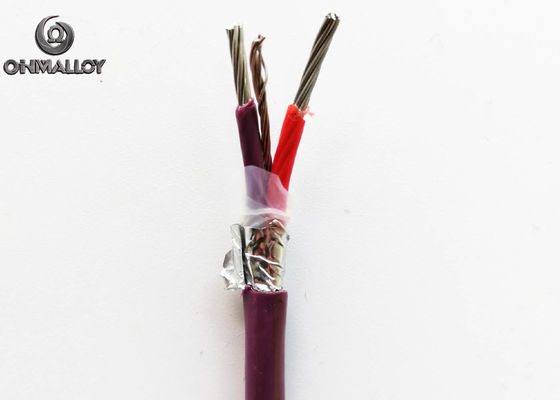

Name: EX-FA-AL+D-FA-1.5R Thermocouple Type E Cable ANSI Conductor: 7 Strands Of 0.51mm

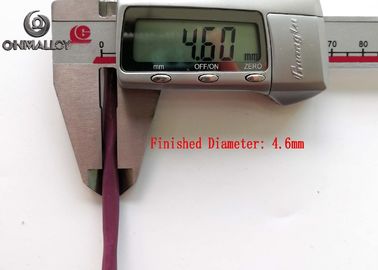

Finished Cable Diameter: 5.2mm(+/-0.3mm) Coating Material: PFA(260℃)
Sheath: Aluminium+FEP Foil Wrapping Drain Wire: 7/0.3mm Nickel Plated Copper Braiding
Package: 500meter/Spool Or 200meter/coil Accuracy: Class A/Class 1

EX-FA-AL+D-FA-1.5R Thermocouple Type E Cable ANSI Sheath with Grounded High Accuracy



Cable Specification
Item Name Type E Extension Cable Extension Thermocouple Wire Type E Cable ANSI Sheath With Grounded High Accuracy
Conductor Material +NiCr10 -CuNi45

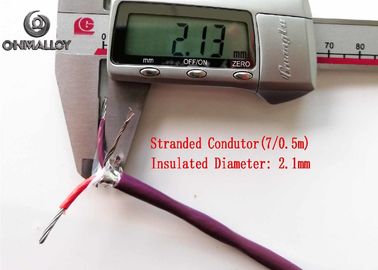

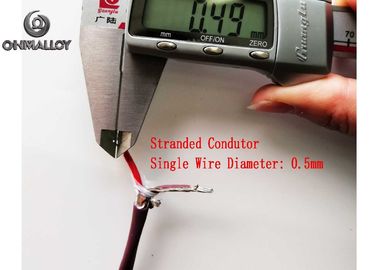

Conductor Dia 7/0.51mm(16AWG, ±0.02mm)
Insulation and Thickness PFA(Teflon, 260℃) 0.25mm
Insulation Diameter 2.1mm(±0.2mm)

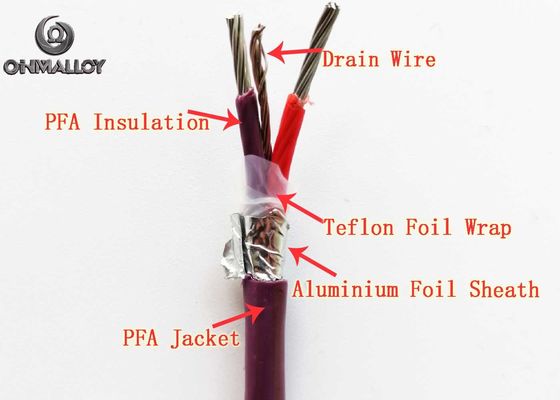

Inner Sheath Material Teflon Foil Wrap+ Aluminium Foil Wrap
Drain Wire Size and Material 7/0.3mm Nickel Plated Copper
Jacket Material and Thickness PFA(Teflon, 260℃) 0.3mm
Finished Cable Diameter 4.8mm(±0.3mm)
Weight 48KG/KM
MOQ 500Meter
Remark The dealing price fluctates according to the quantity.



Conductor Chemical Composition



Material Chemical composition (%)
Ni Cr Copper Mn Al
EP 90 10
EN 45   55







Thermocouple Extension Cable-Know How



The Wire Nominal Chemical Composition for All  Type



Alloy Name Code Nominal Chemical Composition(%)
Cu Ni Cr Si Fe Mg
Copper SPC 100 - - - - -
RPC
KPC
TPC
CuNi0.6 SNC 99.4 0.6 - - - -
RNC
NiCr10 KPX - 90 10 - - -
EPX
NiCr14Si NPX - 84 14.5 1.5 - -
NiSi3 KNX - 97 - 3 - -
NiSi4Mg NNX - 94.5 - 4.5 - 1.0
CuNi40 KNCB 60 40 - - - -
CuNi22 KNCA 78 22 - - - -
CuNi18 NNC 82 18 - - - -
CuNi45 ENX 55 45 - - - -
JNX
TNX
Iron NPC         100
JPX
KPCA





The Nominal Accuracy Tolerence for All Types of Thermocouple Wires



Thermocouple Code Extension Cable Code Alloy Wire Name Temperature Range(℃) Application Classification Tolerence(μV) Thermocouple Measurement Terminal Temperature(℃)
Precision Grade Normal Grade
S or R SC or RC Cu-CuNi0.6 0-100 G ±30(±2.5℃) ±60(±5.0℃) 1000
0-200 H - ±60(±5.0℃)
K KCA Fe-CuNi22 0-100 G ±44(±1.1℃) ±88(±2.2℃) 900
0-200 H
KCB Cu-CuNi40 0-100 G
KX NiCr10-NiSi3 -25-100 G
-25-200 H
N NC Fe-CuNi218 0-100 G ±43(±1.1℃) ±86(±2.2℃) 900
0-200 H
NX NiCr14Si-NiSi4Mg -25-100 G
-25-200 H
E EX NiCr10-CuNi45 -25-100 G ±81(±1.0℃) ±138(±1.7℃) 500
-25-200 H
J JX Fe-CuNi45 -25-100 G ±62(±1.5℃) ±123(±2.5℃) 500
-25-200 H
T TX Cu-CuNi45 -25-100 G ±30(±0.5℃) ±60(±1.0℃) 300
-25-200 H ±48(±0.8℃) ±90(±1.5℃)
