| Name: | OD 0.85mm PP Insulated CuNi44/ Constantan Heating Cable | Material Type: | CuNi44 |
|---|---|---|---|
| Resistivity: | 0.49(at 20℃ (Ωmm2/m)) | Magnetic Properties: | Non-magnetic |
| Density (g/cm3): | 8.9 | Conductivity Coefficient At 20℃: | 23WmK |
| Supply State: | Wire /Strip/ Rod/foil | ||
| High Light: | CuNi44 Copper Based Alloys,OD 0.85mm Copper Based Alloys,Constantan Heating Cable |
||

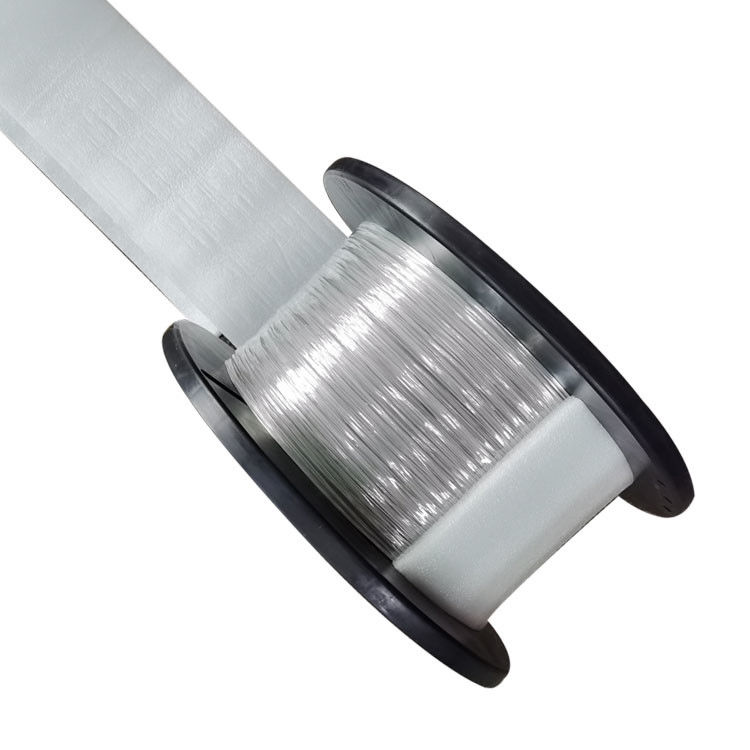

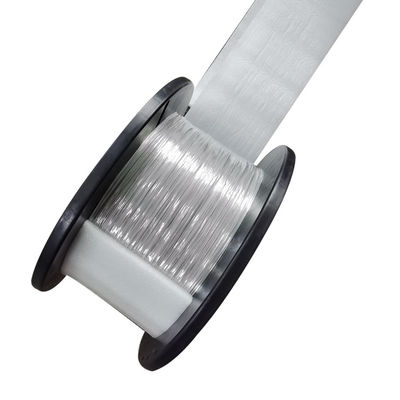

OD 0.85mm PP Insulated CuNi44/ constantan heating cable for heating machine
Constantan(OhmAlloy049.pdf)
Ohmalloy049 is a copper-nickel alloy (Cu56Ni44 alloy), characterized in that high resistance, high degree of deputivity, and good corrosion resistance. It is suitable for typical applications of Ohmalloy49 at temperatures up to 400 ° C, which is a temperature stable potentiometer, industrial varistor and motor starter resistance.
A combination of negligible temperature coefficients and high resistance makes a alloy split of a winding of a precision resistor.
Ohmalloy049 is manufactured from electrolytic copper and pure nickel. In a thinner wire size, the alloy is designated as Ohmalloy49TC (thermocouple).
Normal composition%
| Nickel | 45 | Manganese | 1 |
| Copper | Bal. |
Typical Mechanical properties (1.0mm)
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 250 | 420 | 25 |
Typical Physical properties
| Density (g/cm3) | 8.9 |
| Electrical resistivity at 20℃ (Ωmm2/m) | 0.49 |
| Temperature factor of resistivity(20℃~600℃)X10-5/℃ | -6 |
| Conductivity coefficient at 20℃ (WmK) | 23 |
| EMF vs Cu(μV/℃ )(0~100℃ ) |
-43 |
| Coefficient of thermal expansion | |
| Temperature | Thermal Expansion x10-6/K |
| 20 ℃- 400℃ | 15 |
| Specific heat capacity | |
| Temperature | 20℃ |
| J/gK | 0.41 |
| Melting point (℃) | 1280 |
| Max continuous operating temperature in air (℃) | 400 |
| Magnetic properties | non-magnetic |
|
Alloys |
Working In atmosphere at 20℃ |
Working at max temperature 200℃ | ||||
|
Air and oxygen contain gases |
gases with Nitrogen |
gases with sulfur oxidability |
gases with sulfur reductibility |
carburization | ||
| OhmAlloy049 | good | good | good | good | bad |
good |
