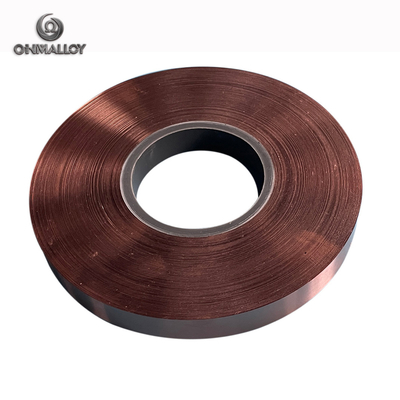

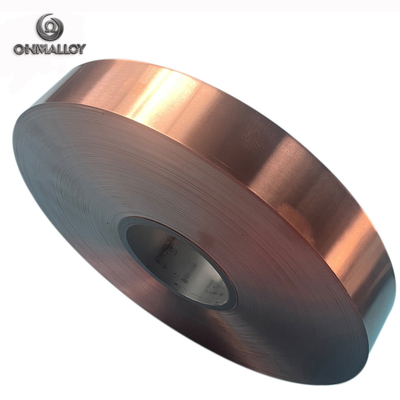

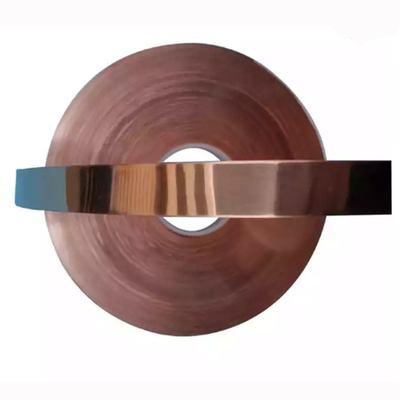

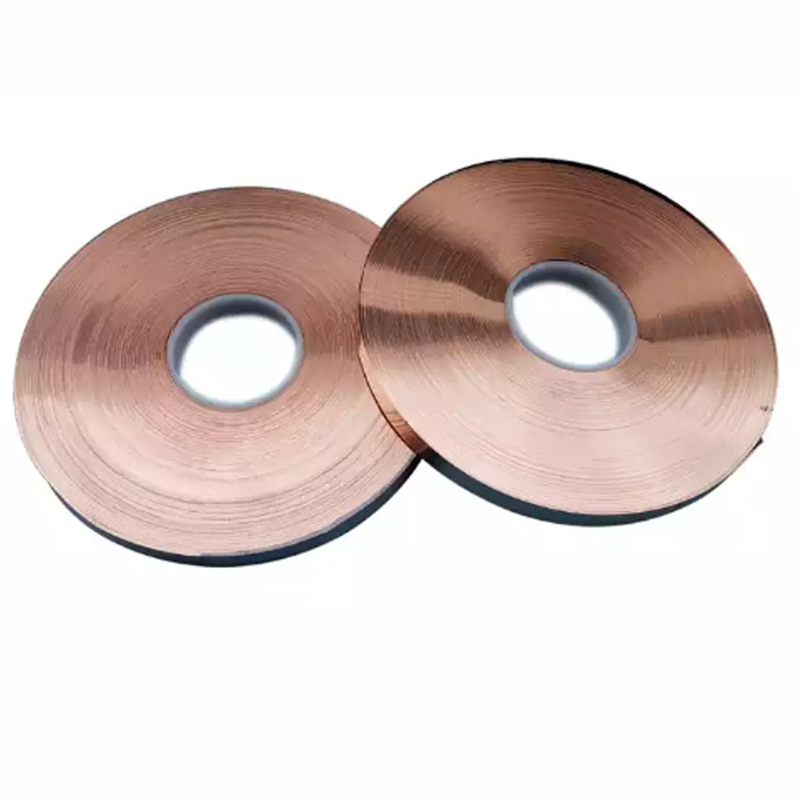

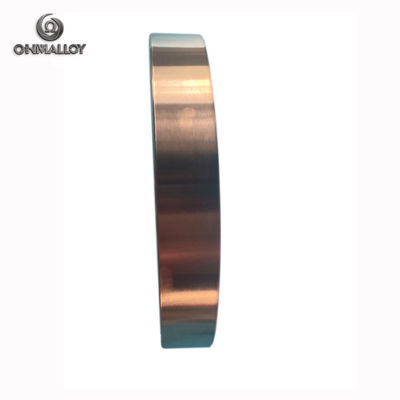

0.254 X 8.2mm ASTM B196 CuBe2 Copper Strips For Bearings

Name: 0.254 X 8.2mm ASTM B196 CuBe2 Copper Strips For Bearings
Brand: OHMALLOY
SKU: C17200
Price: 29.8 USD
Availability: InStock
Rating: 4.9 (139 reviews)

Large Image : 0.254 X 8.2mm ASTM B196 CuBe2 Copper Strips For Bearings Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	OHMALLOY
Certification:	ISO 9001
Model Number:	C17200

Payment & Shipping Terms:

Minimum Order Quantity:	20KGS
Price:	29.8USD/KG
Packaging Details:	Wooden Case
Delivery Time:	10-20 working days
Payment Terms:	T/T
Supply Ability:	100TONS PER WEEK

Contact Now

Detailed Product Description

Thickness:	0.254mm	Width:	8.2mm
Status:	Bright And Half Hard (TD02/TD04)	MOQ:	20KGS
Application:	Relays Stamping Parts And Switches	Ex-works:	29.8USD/KG
High Light:	CuBe2 Copper Strips , ASTM B196 Copper Strips , Bearings Copper Based Alloy Strip

0.254*8.2mm Astm B196 CuBe2 Copper Strips For Bearings

Product Normal Description:

Product Name: High strength and conductivity copper strips

Grade: CuBe2

Standard: ASTM B194, SAE J463, J461

Product Specification: 0.1mm-0.5mm

State: Annealed (A or TB00)

Typical Application: used for bearings

Chemical Composition of CuBe2 Copper Alloy:

Product Grade: UNS. C17200

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.

Typical Physical Properties of CuBe2 Copper Alloy:

Density (g/cm3):	8.36
Density before age hardening (g/cm3):	8.25
Elastic Modulus (kg/mm2 (103)):	13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C):	17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)):	0.25
Melting Range (°C):	870-980

Temper Designations of CuBe2 Copper Strip:

UALLOY	ASTM	Mechanical and Electrical Properties of Copper Beryllium Strip
UALLOY	Designation	Description	Tensile Strength (Mpa)	Yield Strength 0.2% offset	Elongation Percent	HARDNESS (HV)	HARDNESS Rockwell B or C Scale	Electrical Conductivity (% IACS)
A	TB00	Solution Annealed	410～530	190～380	35~60	<130	45~78HRB	15～19
1/2 H	TD02	Half Hard	580～690	510～660	12~30	180~220	88~96HRB	15～19
H	TD04	Hard	680~830	620~800	2~18	220~240	96~102HRB	15～19
HM	TM04	Mill hardened	930～1040	750～940	9～20	270～325	28～35HRC	17～28
SHM	TM05		1030～1110	860～970	9～18	295～350	31～37HRC	17～28
XHM	TM06		1060～1210	930～1180	4～15	300～360	32～38HRC	17～28

The Fabrication Properties of CuBe2 (C17200) Copper Alloys
Hot Working	C17200 copper alloys have good hot working capabilities.
Cold Working	C17200 copper alloys have excellent cold working properties.
Annealing	Annealing is the process of heating metal or glass and allowing it to cool slowly. This process removes internal stresses and strengthens it. C17200 copper alloys are annealed at temperatures from 774 to 802 degrees Celsius.
Other fabrication properties	Include blanking, drawing, drilling, forming and bending, tapping, and turning.
