Product Details:
Payment & Shipping Terms:
|
| Conductor: | +Chromel, -Alumel | Conductor Dia: | 20AWG |
|---|---|---|---|
| Insulation Material: | Vitreous Silica | Jacket Material: | Vitreous Silica |
| Color: | White | Package: | 1000ft/roll |
| Standard: | ANSI96.1 Or IEC 584-2 | ||
| High Light: | k type thermocouple cable,thermocouple bare wire |
||

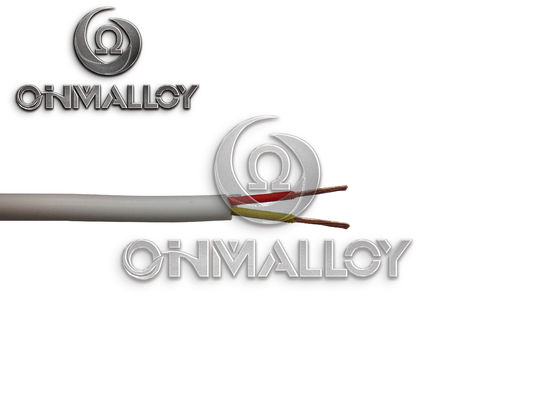

ANSI standard white Type K Extension Cable Parallel Cable Construction
| Item No. | K-VS-VS-0.81 |
| Conductor Material | +Chromel, -Alumel |
| Conductor Dia | 0.81mmX2 |
| Insulation material | Vitreous Silica |
| Insulation color | + yellow, -red |
| Cable Construction | Parallel |
| Inner Shielding material | / |
| Jacket material | Vitreous Silica |
| Jacket color | White |
| Outer Shielding Material | / |
| Insulated DIA | 1.0mm |
| Cable DIA | 2.9mm*4.1mm |
| Cable Dielectric Test | DC.500v |
| Net weight | 22kg/km |
| CHARACTERISTICS: | |
| Temperature coefficient | 0.00032 K−1 |
| Electrical resistivity | 0.706 µΩ m |
| Mechanical properties | |
| Elongation at break | <44% |
| Izod impact strength | 108 J m−1 |
| Modulus of elasticity | 186 GPa |
| Tensile strength | 620–780 MPa |
| Physical properties | |
| Density | 8.5 g cm−3 |
| Melting point | 1420 °C |
| Thermal properties | |
| Coefficient of thermal expansion | 12.8×10−6 K−1 at 20–1000 °C |
| Maximum use temperature in air | 1100 °C |
| Thermal conductivity | 19 W m−1 K−1 at 23 °C |
Style of supply
| Alloys Name | Type | Dimension | ||
| Chromel-W | Wire | D=0.05mm~12mm | ||
| Chromel-R | Ribbon | W=0.5-10m | T=0.05~1.5mm | |
| Chromel-S | Strip | W=10~150mm | T=0.1~3.0 | |
| Chromel-B | Bar | Dia=5-12mm | L=50~1500 | |
