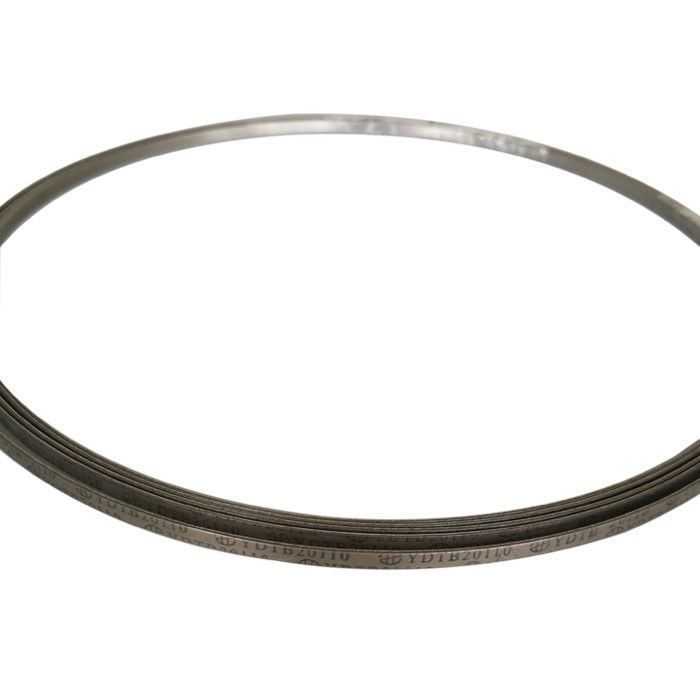

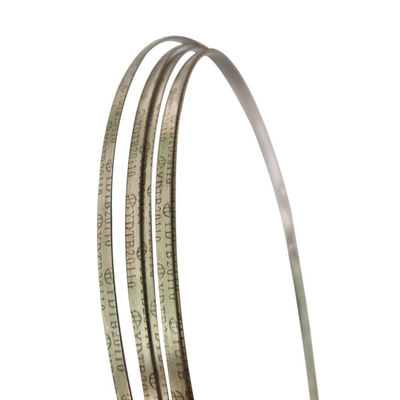

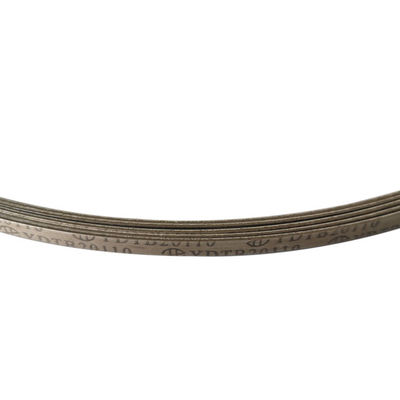

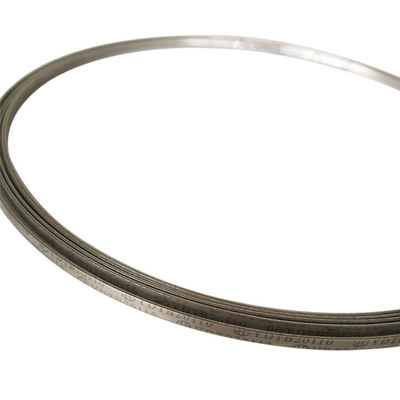

1mmx5mm Thermal Bimetallic Strip 5J20110 Grade For Spring

1mmx5mm Thermal Bimetallic Strip 5J20110 Grade For Spring
1mmx5mm Thermal Bimetallic Strip 5J20110 Grade For Spring
video play

Large Image :  1mmx5mm Thermal Bimetallic Strip 5J20110 Grade For Spring Get Best Price

Product Details:
Place of Origin: China
Brand Name: Ohmalloy
Certification: ISO 9001:2015 RoHs
Model Number: 20110S1X5BH
Payment & Shipping Terms:
Minimum Order Quantity: 30kgs
Packaging Details: plywood pallets or wooden cases
Delivery Time: 15-20 working days
Payment Terms: L/C,D/P, T/T, , MoneyGram
Supply Ability: 100tons/month
Detailed Product Description

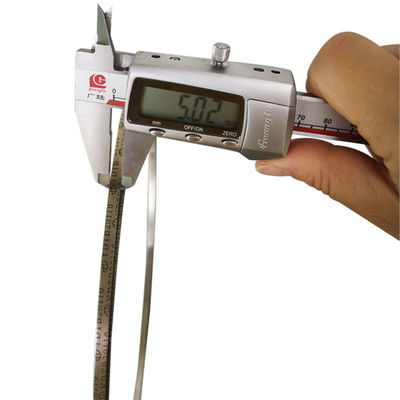

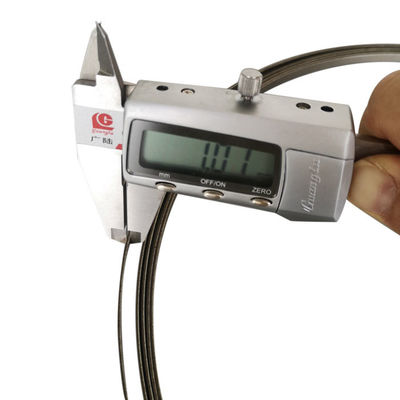

Condition: Bright,Hard Conductor Dimension: 1.0(+/-0.025)mmx5.0(+/-0.08)mm
Resistance Value: 0.226ohm/m+/-5% Density: 7.7g/cm3
Length: 26m/kg Weight: About 5kgs/coil
Package: Wooden Case Standard: GB/T4461-2007
High Light:

Thermal Bimetallic Strip

,

1mmx5mm Bimetallic Strip

,

5J20110 Grade Bimetallic Strip

1mmx5mm Thermal Bimetals Strip 5J20110 For Spring



Application:This material is mainly used for automatic control devices and meters (such as: exhaust thermometer, thermostat, voltage regulator, temperature relay, automatic protection switch, diaphragm meter, etc.) as temperature control, temperature compensation, current limiting, temperature indicator and other thermal sensing elements.



Feature: The basic characteristics of Thermostat Bimetallic is bending deformation with temperature changes, resulting in a certain moment.
Thermostat Bimetallic Strip expansion coefficient is different from the two or more layers of metal or alloy along the entire contact surface firmly bonded, having a temperature-dependent shape change occurs thermosensitive functional composites. Wherein the higher expansion coefficient of the active layer is a layer called a low coefficient of expansion of the layer is named passive layer.


Description of this material


Composition

Grade 5J20110
High expansion layer Mn75Ni15Cu10
10Low expansion layer Ni36



Chemical composition(%)

Grade C Si Mn P S Ni Cr Cu Fe
Ni36 ≤0.05 ≤0.3 ≤0.6 ≤0.02 ≤0.02 35~37 - - Bal.
Grade C Si Mn P S Ni Cr Cu Fe
Mn75Ni15Cu10 ≤0.05 ≤0.5 Bal. ≤0.02 ≤0.02 14~16 - 9~11 ≤0.8



Typical Physical properties

Density (g/cm3) 7.7
Electrical resistivity at 20℃(Ωmm2/m) 1.13 ±5%
Thermal conductivity, λ/ W/(m*℃) 6
Elastic Modulus, E/ Gpa 113~142
Bending K / 10-6-1(20~135℃) 20.8
Temperature bending rate F/(20~130℃)10-6-1 39.0%±5%
Allowable temperature (℃) -70~ 200
Linear temperature (℃) -20~ 150



1mmx5mm Thermal Bimetallic Strip 5J20110 Grade For Spring 01mmx5mm Thermal Bimetallic Strip 5J20110 Grade For Spring 1
