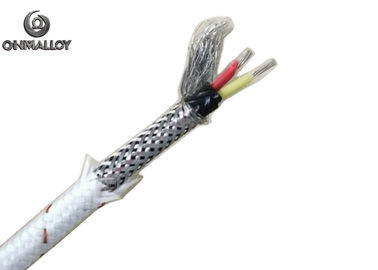

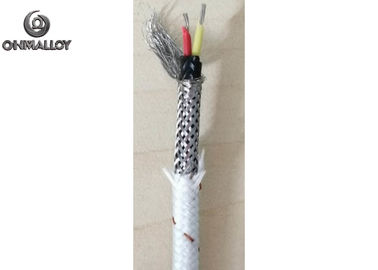

Type K Thermocouple Cable PFA Fiberglass Cable Stainless Steel 304 Sheath

I'm Online Chat Now
Certification
China Ohmalloy Material Co.,Ltd certification
China Ohmalloy Material Co.,Ltd certification
I search for Nichrome plate long time, and successfully bought it from Ohmalloy material. OHMALLOY provide real good service in alloy service and can always help me in finding the correct resistance alloy.

—— Mike Harness

OHMALLOY can provie me only 1kg Kovar alloy wire 1.0mm with short time, that is really amazing. Thanks

—— Janey

Really professional in thermocouple wire and cable, what i want just can get from OHMALLOY

—— Chris

Enamelled Constantan 0.08mm, i never expect to get only 2kg of it. But OHMALLOY supply it to me with good quality. God Jesus! Such a reliable supplier from china

—— Aaron

Type K Thermocouple Cable PFA Fiberglass Cable Stainless Steel 304 Sheath

Type K Thermocouple Cable PFA Fiberglass Cable Stainless Steel 304 Sheath
Type K Thermocouple Cable PFA Fiberglass Cable Stainless Steel 304 Sheath Type K Thermocouple Cable PFA Fiberglass Cable Stainless Steel 304 Sheath Type K Thermocouple Cable PFA Fiberglass Cable Stainless Steel 304 Sheath

Large Image :  Type K Thermocouple Cable PFA Fiberglass Cable Stainless Steel 304 Sheath Get Best Price

Product Details:
Place of Origin: Shanghai
Brand Name: OHMALLOY/OEM
Certification: RoHS
Model Number: SP-KX-FA-HP-SS304-BL-0.5R
Payment & Shipping Terms:
Minimum Order Quantity: 500 meters
Packaging Details: Coil+plywood case
Delivery Time: 5-15working days after payment confirmed
Payment Terms: L/C, T/T, , MoneyGram,paypal
Supply Ability: 300000 meters per month
Detailed Product Description
Name: Thermocouple Type K PFA Fiberglass Cable KX-FA-HP-SS304-BL-0.5R Conductor: 7 Strands Of 0.3mm
Finished Cable Diameter: 3.7x4.8mm(+/-0.3mm) Coating Material: PFA(260℃)
Sheath: Stainless Steel 304 Accuracy: Class A/Class 1
High Light:

k type thermocouple cable

,

thermocouple bare wire

,

thermocouple extension wire

Thermocouple Type K PFA Fiberglass Cable KX-FA-HP-SS304-BL-0.5R Customzied Specification

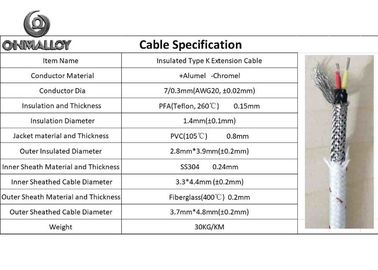

Cable Specification
Item Name Insulated Type K Extension Cable Type K Thermocouple Cable PFA Fiberglass Cable Stainless Steel 304 Sheath 0
Conductor Material +Alumel -Chromel
Conductor Dia 7/0.3mm(AWG20, ±0.02mm)
Insulation and Thickness PFA(, 260℃) 0.15mm
Insulation Diameter 1.4mm(±0.1mm)
Jacket material and Thickness PVC(105℃) 0.8mm
Outer Insulated Diameter 2.8mm*3.9mm(±0.2mm)
Inner Sheath Material and Thickness SS304 0.24mm
Inner Sheathed Cable Diameter 3.3*4.4mm (±0.2mm)
Outer Sheath Material and Thickness Fiberglass(400℃) 0.2mm
Outer Sheathed Cable Diameter 3.7mm*4.8mm(±0.2mm)
Weight 30KG/KM





Conductor Chemical Composition



Material Chemical composition (%)
Ni Cr Si Mn Al
KP 90 10
KN 95   1-2 0.5-1.5 1-1.5







Thermocouple Extension Cable-Know How



The Wire Nominal Chemical Composition for All  Type



Alloy Name Code Nominal Chemical Composition(%)
Cu Ni Cr Si Fe Mg
Copper SPC 100 - - - - -
RPC
KPC
TPC
CuNi0.6 SNC 99.4 0.6 - - - -
RNC
NiCr10 KPX - 90 10 - - -
EPX
NiCr14Si NPX - 84 14.5 1.5 - -
NiSi3 KNX - 97 - 3 - -
NiSi4Mg NNX - 94.5 - 4.5 - 1.0
CuNi40 KNCB 60 40 - - - -
CuNi22 KNCA 78 22 - - - -
CuNi18 NNC 82 18 - - - -
CuNi45 ENX 55 45 - - - -
JNX
TNX
Iron NPC         100
JPX
KPCA





The Nominal Thermoelectrom-otive force(μV) for Negative and Positive Wire



Thermocouple Code Extension Cable Code Application Classification Measurement Terminal Temperature(℃) Nominal Thermoelectrom-otive force(μV) Precision Grade Thermoelectrom-otive force Normal Grade Thermoelectrom-otive force
Tolerance (μV) Value Range (μV) Tolerance (μV) Value Range (μV)
S or R SC or RC G 100 646 ±30 616~676 ±60 586~706
H 100 646 - - ±60 586~706
200 1441 - - 1381~1501
K KX KCA or KCB G -25 -968 ±44 -924~-1012 ±88 -880~-1056
100 4096 4052~4140 4008~4184
K KX or KCA H   -968 ±44 -924~-1012 ±88 -880~-1056
100 4096 4052~4140 4008~4184
200 8138 8094~8182 8050~8226
N NC or NX G -25 -646 ±43 -603~-689 ±86 -560~-732
100 2774 2731~2817 2688~2860
H -25 -646 ±43 -603~-689 ±86 -560~-732
100 2774 2731~2817 2688~2860
200 5913 5870~5956 5827~5999
E EX G -25 -1432 ±81 -1351~-1513 ±138 -1294~-1570
100 6319 6238~6400 6181~6457
H -25 -1432 ±81 -1351~-1513 ±138 -1294~-1570
100 6319 6238~6400 6181~6457
200 13421 13340~13502 13283~13559
J JX G -25 -1239 ±62 -1177~-1301 ±123 -1116~-1362
100 5269 5207~5331 5146~5392
H -25 -1239 ±62 -1177~-1301 ±123 -1116~-1362
100 5269 5207~5331 5146~5392
200 10779 10717~10841 10656~10902
T TX G -25 -940 ±30 -910~-970 ±60 -880~-1000
100 4279 4249~4309 4219~4339
H -25 -940 ±48 -892~-988 ±90 -850~-1030
100 4279 4231~4327 4189~4369
200 9288 9240~9336 9198~9378
